Description

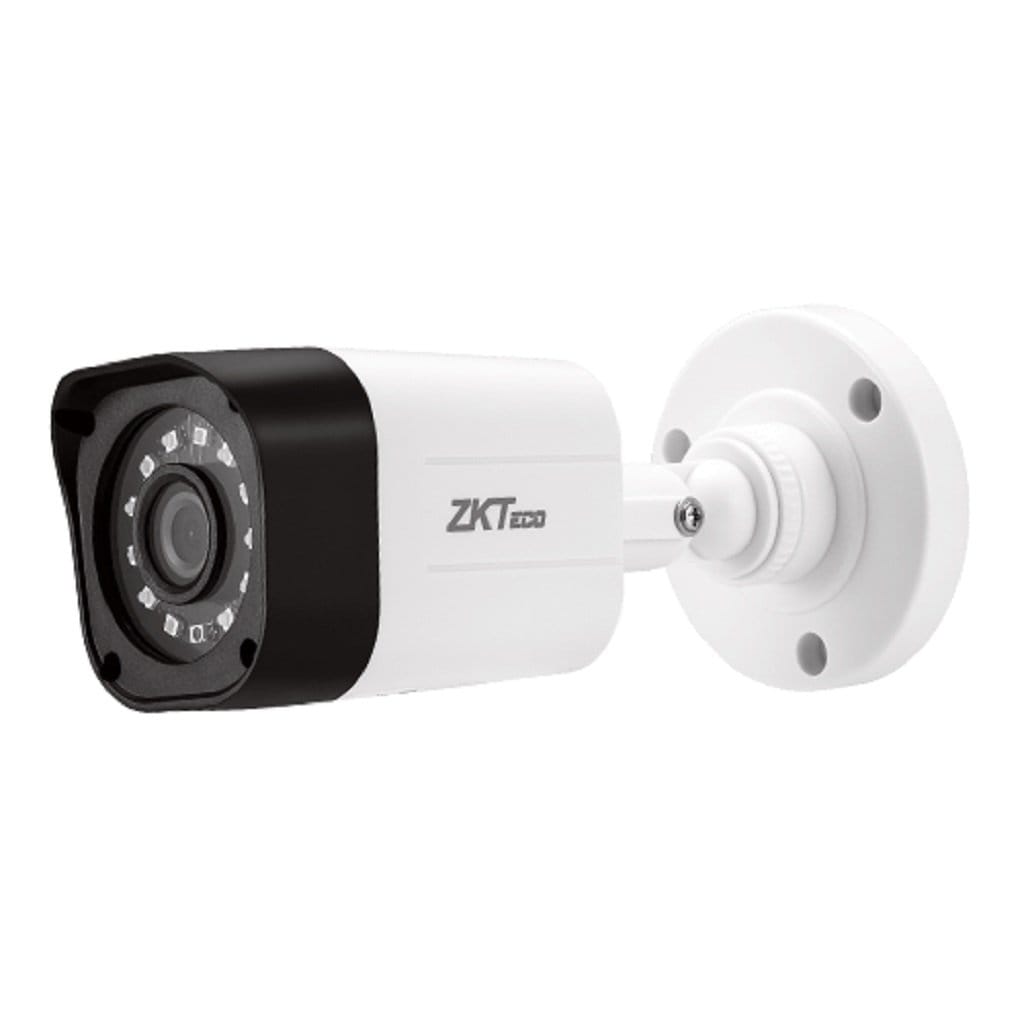

EZ Series 1080P HD analog camera adopts advanced 4-in-1 ISP and 1/2.9" image sensor, featured by the excellent image details with wide FOV. It o ers built-in UTC function to switch the signal output exibly among the 4 popular technologies. It's ideal solution for SMB solution with high cost-performance ratio and simplicity for installation.
Long Distance Transmission
Powered by leading HD Videoloss technology, it supports up to 500m/800m transmission over RG59/RG6 coaxial cables separately.
EZ series is designed with smart IR function to avoid of the IR LED overexposure when object/people is getting closer to the camera in the night, ensuring the light intensity is changing proportionally with the distance between camera and objects.
Advanced 4-in-1 Technology
Specifications
| Attribute / Feature | Specification Details |
| Model | BS-32B11M |
| Image Sensor | 1/2.9” 2MP Sensor |
| Scanning System | Progressive |
| Min. Illumination | 0.1Lux/F2.4 (color) 0 Lux with IR on |
| Effective Pixels | 1920(H)*1080(V) |
| S/N Ratio | More than 52dB |
| IR Distance | 10~20m |
| IR LED No. | 12 |
| Focal Length | 2.8mm |
| Aperture | F2.4 |
| FOV | 92° |
| Video Output | AHD/TVI/CVI/CVBS |
| Resolution | 25/30fps@1080P |
| OSD Menu | Supported |
| BLC | N/A |
| WDR | DWDR |
| AGC | Supported |
| Day/Night | Auto(ICR)/Manual |
| White Balance | Supported |
| Noise Reduction | 2D DNR |
| Working Temperature | -30°C~+60°C |
| Working Humidity | 10~90% |
| Power Supply | DC12V±10% |
| Power Consumption | ＜3.2W(IR off) |
| Dimensions | 160(L)*56 (W)*70(H)mm |
| Net Weight | 0.15KG |
| Gross Weight | 0.25KG |
