Description

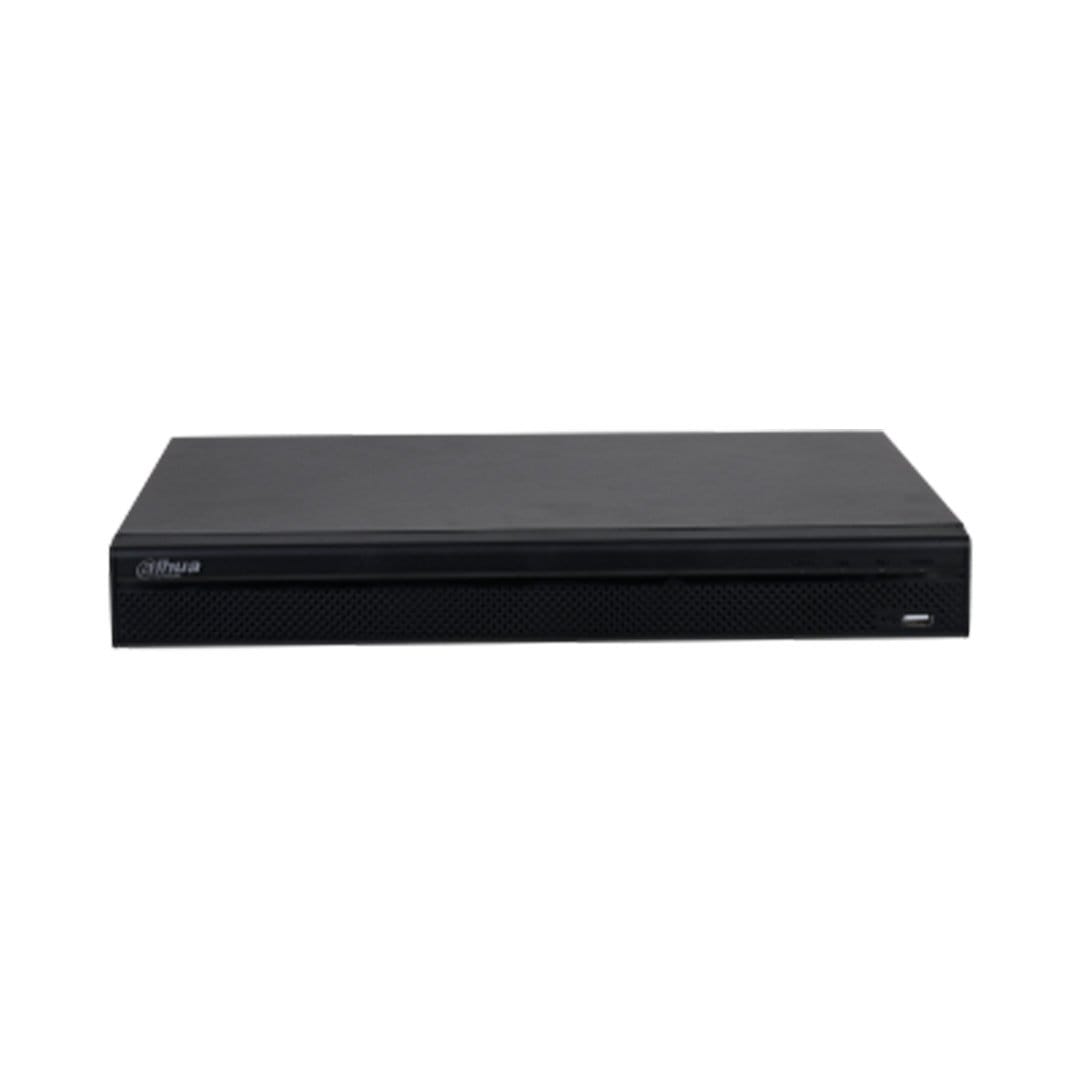

The Dahua DHI-NVR4216-4KS2/L 16 Channel 4K NVR is a dependable network video recorder designed for medium and large-scale IP surveillance installations. Ideal for offices, shopping malls, factories, educational institutions, hospitals, hotels, warehouses, and commercial facilities, this recorder supports up to 16 IP cameras while delivering up to 12MP recording and decoding capability. Powered by Smart H.265+ video compression, it efficiently minimizes storage requirements and bandwidth usage without compromising video quality.
The Dahua DHI-NVR4216-4KS2/L 16 Channel 4K NVR offers 4K Ultra HD HDMI output (3840 × 2160) for clear live viewing and playback. Its intuitive recording interface supports continuous, scheduled, and motion-triggered recording, helping users manage surveillance footage efficiently. ONVIF compatibility allows seamless integration with a wide range of compatible IP cameras, making the recorder suitable for both new installations and CCTV system upgrades.
Supporting two SATA hard drives with up to 10TB capacity each, the recorder provides ample storage for long-term surveillance recording. Users can monitor their security system remotely through the DMSS mobile app, Smart PSS software, or web browser, enabling convenient live viewing, playback, backup, and event notifications from anywhere. Its compact desktop design also simplifies installation in professional security environments.
CSL Systems has been Bangladesh's authorized Dahua distributor. Every Dahua DHI-NVR4216-4KS2/L 16 Channel 4K NVR is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
Specifications
| Attribute / Feature | Specification Details |
| Product Type | 16 Channel 4K Network Video Recorder (NVR) |
| Model | Dahua DHI-NVR4216-4KS2/L |
| Main Processor | Industrial-grade Embedded Processor |
| Operating System | Embedded Linux |
| User Interface | Web Browser & Local GUI (UI 4.0) |
| IP Camera Input | 16 Channels |
| Maximum Camera Resolution | Up to 8MP |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Incoming Bandwidth | 160 Mbps |
| Recording Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Decoding Capacity | 8 × 1080p @ 30fps |
| AI by Camera | Face Detection, Perimeter Protection, SMD Plus, IVS, People Counting, Heat Map |
| Perimeter Protection | Up to 8 Channels |
| Face Detection | Up to 4 Channels |
| SMD Plus | Up to 12 Channels |
| Video Output | 1 × HDMI, 1 × VGA (Simultaneous Output) |
| HDMI Resolution | Up to 3840 × 2160 (4K) |
| VGA Resolution | Up to 1920 × 1080 |
| Multi-screen Display | 1 / 4 / 8 / 9 / 16 Split |
| Playback | Up to 16-Channel Synchronous Playback |
| Audio Compression | PCM, G.711A, G.711U, G.726, AAC |
| Audio Interface | 1 × RCA Audio Input, 1 × RCA Audio Output |
| HDD Interface | 2 × SATA III |
| Maximum HDD Capacity | Up to 10TB per HDD |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps Ethernet) |
| Third-Party Camera Support | ONVIF (Profile S/G/T), RTSP, CGI, SDK |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, SMTP, DHCP, DNS, DDNS, FTP, NTP, P2P |
| USB Ports | 2 × USB 2.0 (1 Front, 1 Rear) |
| Alarm Interface | 4 Alarm Inputs, 2 Alarm Outputs |
| Mobile Monitoring | DMSS (Android & iOS) |
| Power Supply | 12V DC, 4A |
| Power Consumption | <10W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–93% RH |
| Dimensions | 375 × 282.4 × 53 mm |
| Net Weight | 1.51 kg (Without HDD) |
