Description

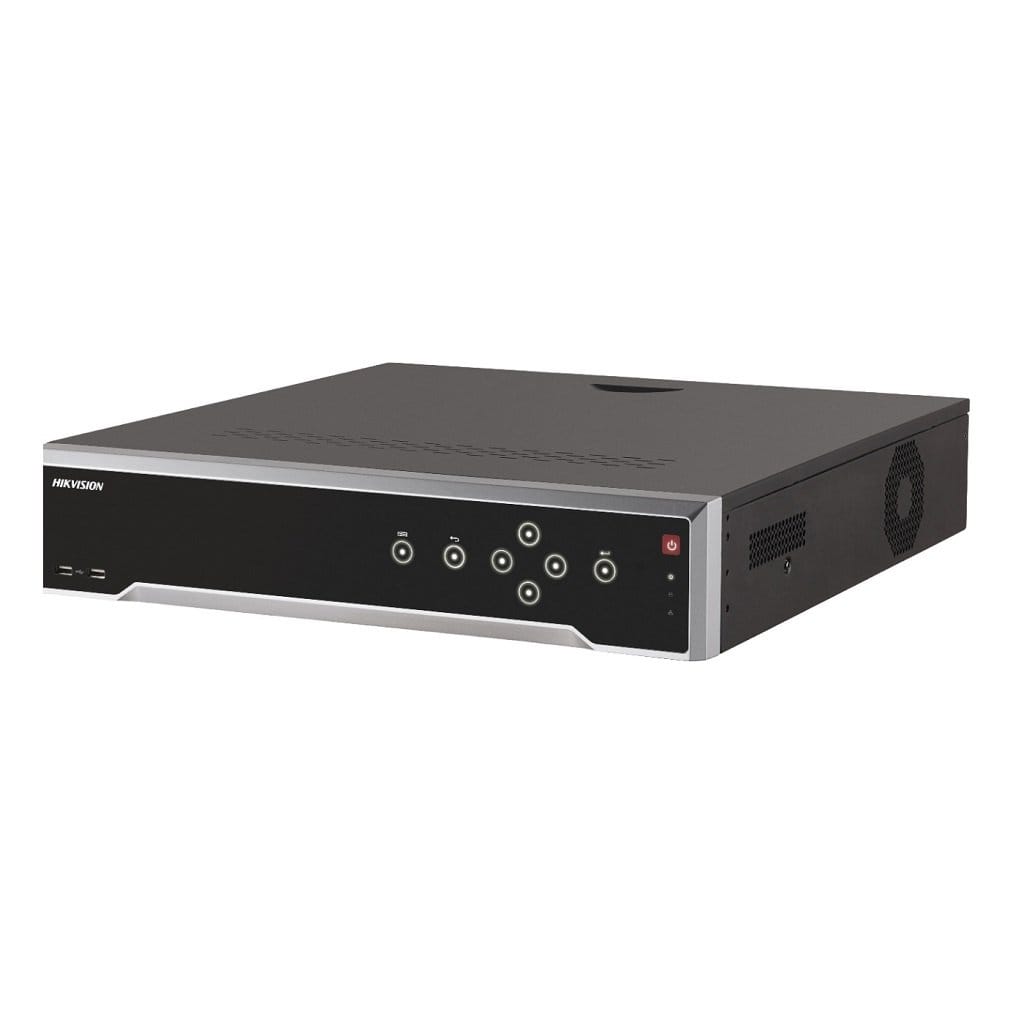

The HIKVISION DS-7716NI-K4 is a high-performance 16-channel 4K network video recorder designed for commercial-grade surveillance. Whether for office buildings, industrial zones, or institutional monitoring, this NVR supports intelligent video management, reliable storage, and smooth playback with advanced H.265+ compression technology.
The DS-7716NI-K4 is suitable for:
Available across all Digi-Mark showrooms (Motijheel, Multiplan, IDB, Uttara, Chattogram)
Ms. Nusrat Jahan – Admin Officer, Gazipur Industrial Zone “We’ve installed the DS-7716NI-K4 for our warehouse security system, and the results are excellent. Great video clarity, simple remote access, and reliable performance. Digi-Mark Solution made the whole process effortless.”
Q: What is the maximum storage capacity of this NVR? A: It supports 4 SATA HDDs, each up to 10 TB, for a total of 40 TB storage.
Specifications
| Attribute / Feature | Specification Details |
| IP Video Input | 16-ch |
| HDMI Output | 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth | 256 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format | H.265/H.265+/H.264+/H.264/MPEG4 |
| Decoding Capability | 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) |
| Synchronous Playback | 16-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF,/2CIF/CIF/QCIF, |
| Network Protocol | TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP,SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm in/out | 16/4 |
| Power supply | 100 to 240 VAC |
| Power | ≤ 80 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10 to 90 % |
| Dimensions (W × D × H) | 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
| Weight (without hard disk) | ≤ 5 kg (11. lb) |
