Description
The ML10B series is a smart lock with embedded fingerprint recognition technology. It supports Bluetooth connection, door unlocking and user management by mobile phone.

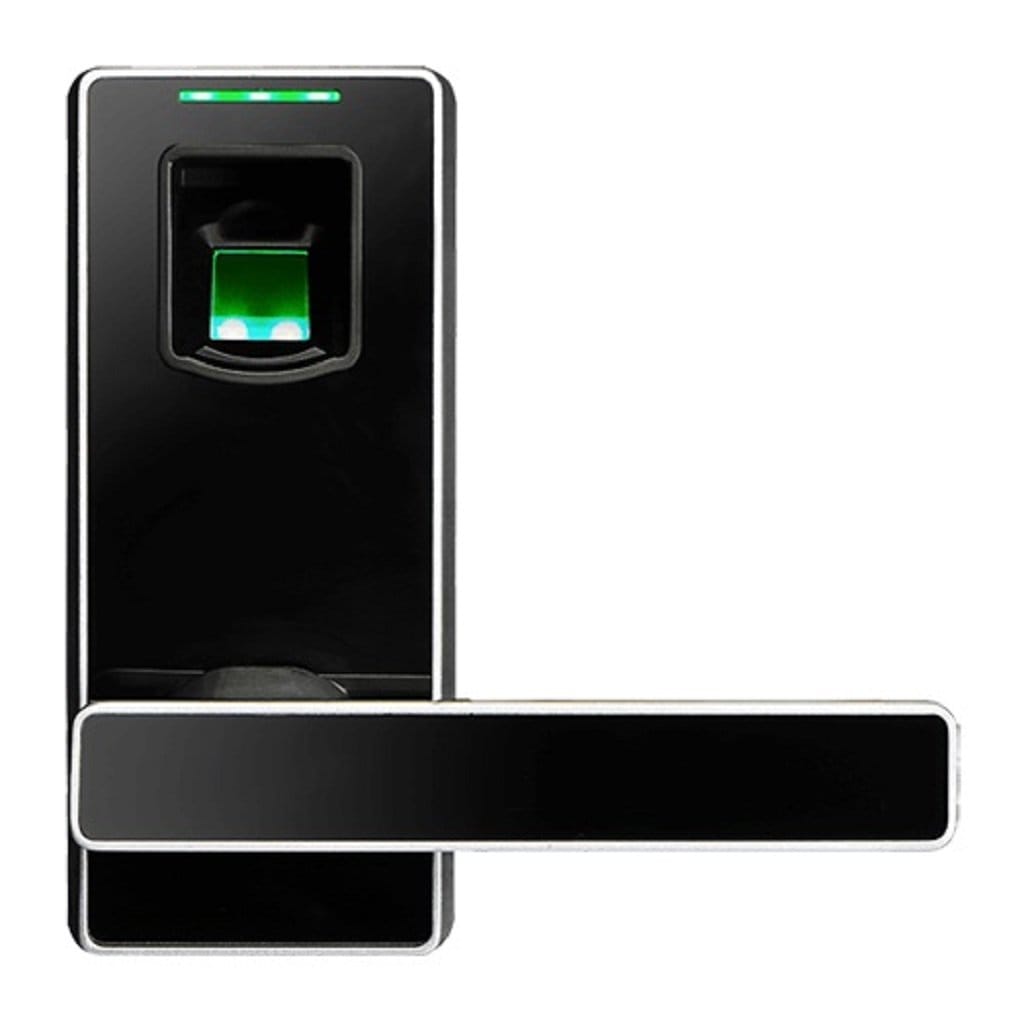

ZKTeco ML10B is a smart door lock with embedded fingerprint recognition that also supports Bluetooth for door unlocking and user management through the ZKBioBT mobile app. It is designed with a rugged, sleek, compact body and uses a new‑generation fingerprint algorithm for faster and more accurate identification. The lock includes an independently patented clutch motor and an idle handle design to help prevent forcible entry, while all registration data remains stored even if power is lost.
ML10B offers a reversible handle, latch, and strike so it can be installed on doors opening in any direction, and it uses capacitive sensing technology so users can simply touch to open. For emergencies, there is a concealed mechanical key override and external terminals that allow backup power from a 9V battery, supported by a low‑battery warning indicator. An LED indicator and built‑in buzzer provide clear status feedback during operation.
The lock supports three user groups—Admin, Normal User, and Temporary User—making it suitable for both permanent residents and short‑term guests. It also includes a normal open mode, is easy to program and use, and requires no wiring for installation, thanks to its American standard single latch design on the ML10B model.
CSL Systems has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco ML10B Smart Door Lock is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
Specifications
| Attribute / Feature | Specification Details |
| Card | ID Card (Optional) |
| Communication | Bluetooth (Optional) |
| Material | Zinc Alloy (ML10 Series) ABS Plastic (PL10 Series) |
| Backset | 60mm or 70mm (Adjustable)- American Single Latch; 62 mm – German Standard Mortise |
| User Capacity | Admin -10; Normal User – 60; Temporary User – 20 |
| Power Supply | 4 × AA Alkaline Battery |
| Operating Temperature | 0°C – 55°C |
| Battery Life | Over 6000 Times (Approx. 1 Year) |
| Backup Unlocking Way | Mechanical Key & 9V Battery |
| Door Thickness | 30-53 mm (Standard) |
| Dimensions (W*L*D ) | Front – 69*155*35 mm Back – 69*155*25 mm |
