Description

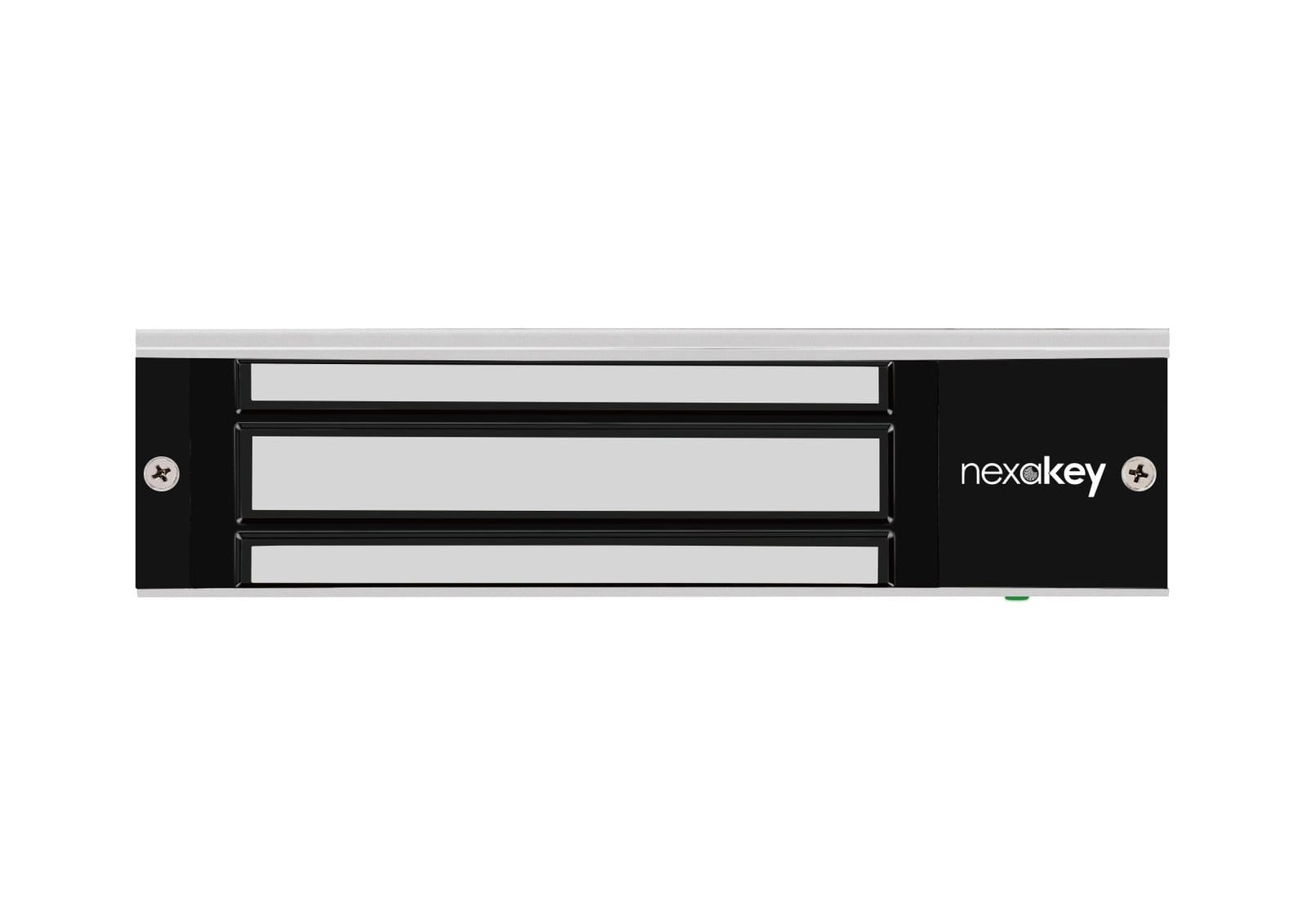

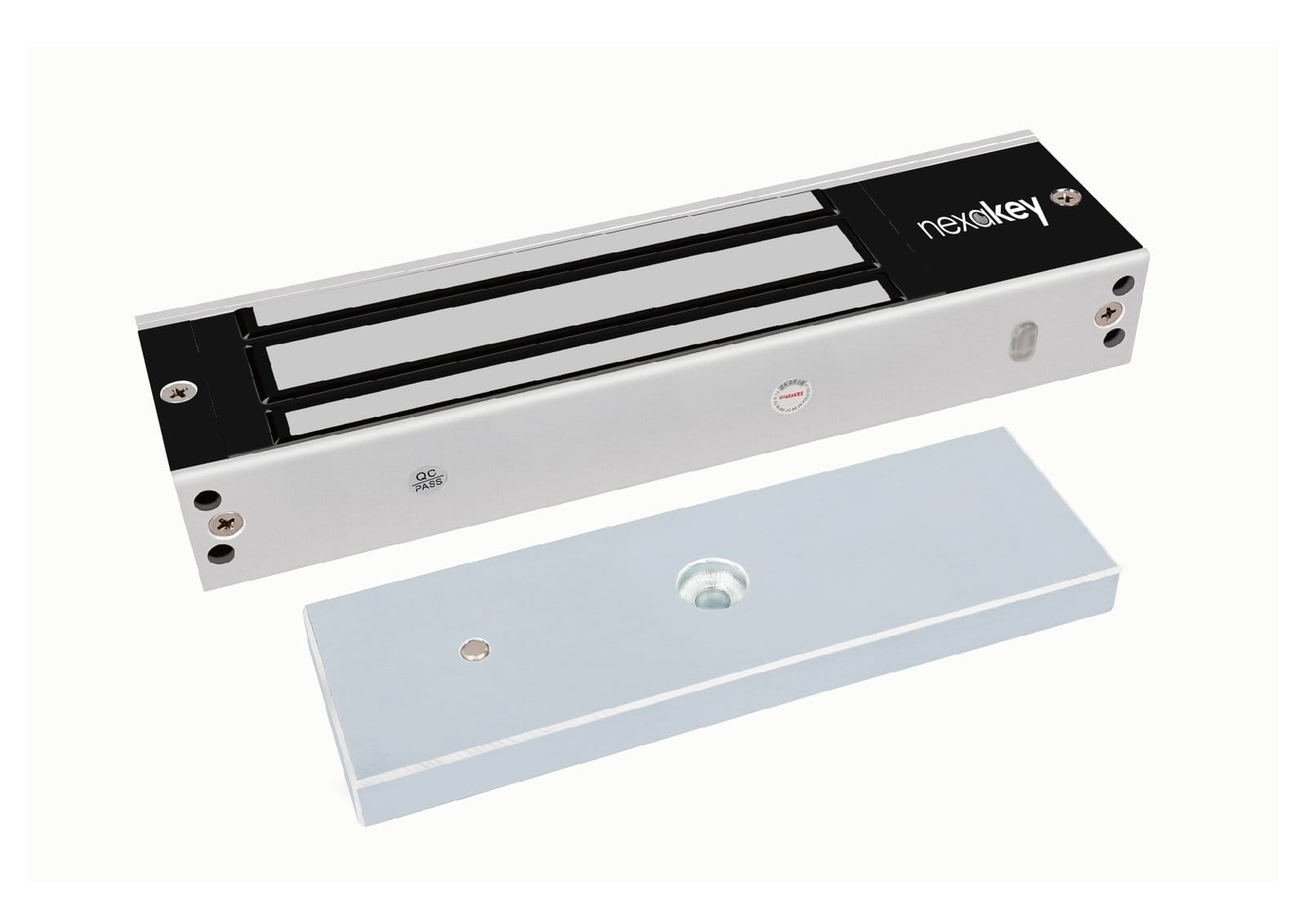

The Nexakey NX-500AS Single Door Magnetic Lock is a high-security electromagnetic locking solution designed for modern access control systems. Built with a powerful 500 KG (1100 lbs) holding force, this magnetic lock provides reliable protection for offices, commercial buildings, educational institutions, residential complexes, and industrial facilities where controlled access is essential.
Designed for compatibility with wooden, glass, metal, and fireproof doors, the Nexakey NX-500AS Single Door Magnetic Lock offers excellent installation flexibility across a wide range of applications. Its robust electromagnetic design ensures secure door locking while minimizing mechanical wear, making it a dependable choice for long-term operation.
One of the key advantages of the Nexakey NX-500AS Magnetic Lock is its integrated LED status indicator. The green LED indicates that the door is securely locked, while the red LED shows that the door is unlocked. This visual feedback helps security personnel and facility managers quickly monitor door status without requiring additional equipment. The lock also supports dry contact signal output (NO/NC/COM), allowing seamless integration with access control systems, biometric devices, RFID readers, controllers, and monitoring software.
Operating on DC 12V with a working current of 0.48A, the lock delivers efficient performance while maintaining strong security. Its anti-residual magnetism design improves reliability by ensuring smooth release operation after power interruption. The abrasion-resistant construction further enhances durability, making it suitable for high-traffic environments that require continuous daily use.
As a professional-grade electromagnetic lock, the Nexakey NX-500AS Single Door Magnetic Lock is ideal for offices, banks, hospitals, schools, server rooms, and restricted-access areas. Organizations looking for a dependable magnetic locking solution will appreciate its combination of security, durability, and integration capabilities.
Specifications
| Attribute / Feature | Specification Details |
| Model | NX-500AS |
| Max Holding Force | 500 KG (1100 Lbs) |
| Input Voltage | DC12V |
| Working Current | 12V/0.48A |
| LED Indicator | Green : Door Locked, Red: Door Unlocked |
| Signal OutpuT | Dry Contact Signal Output |
| Suitable Door Types | Wooden door, glass door, metal door, fireproof door |
| Dimension | 265L*72.7W*40.7H(mm) |
| Weight | 4.4 Kg |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
