Description

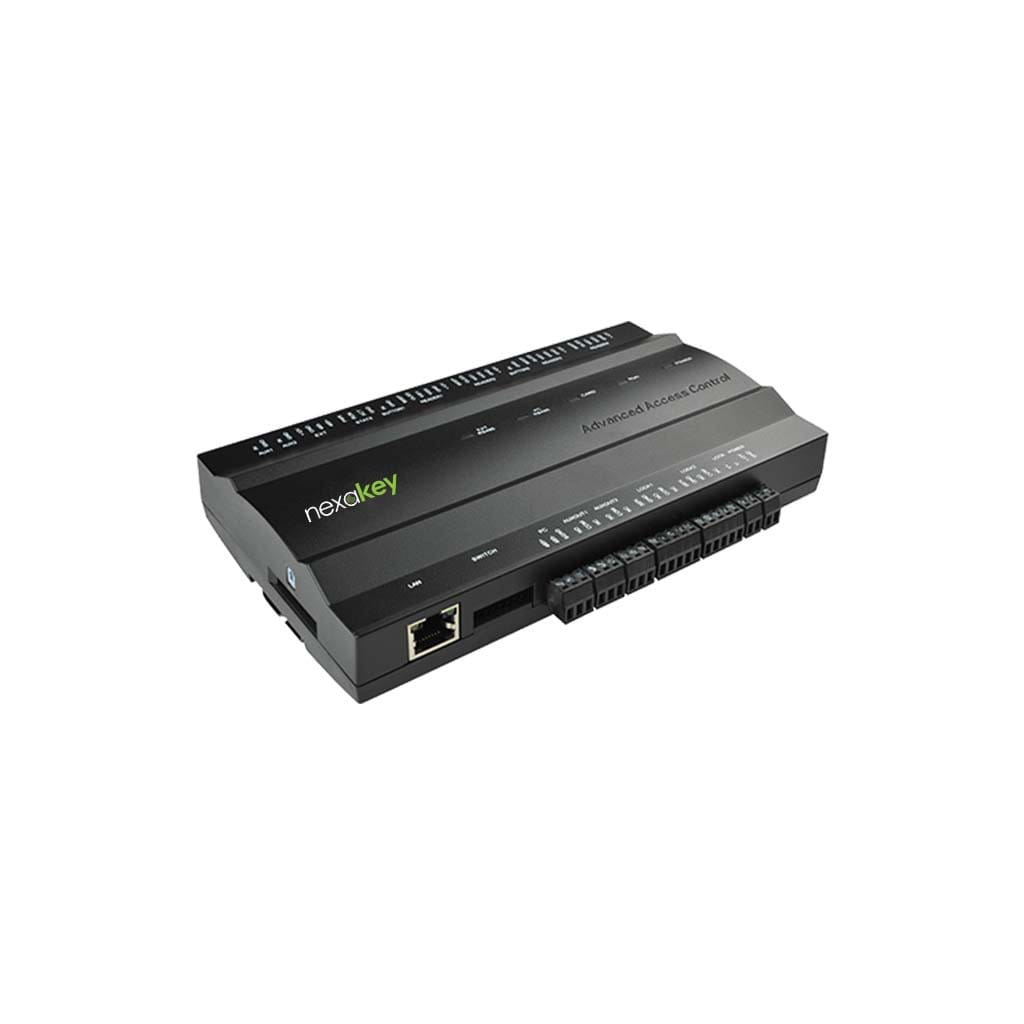

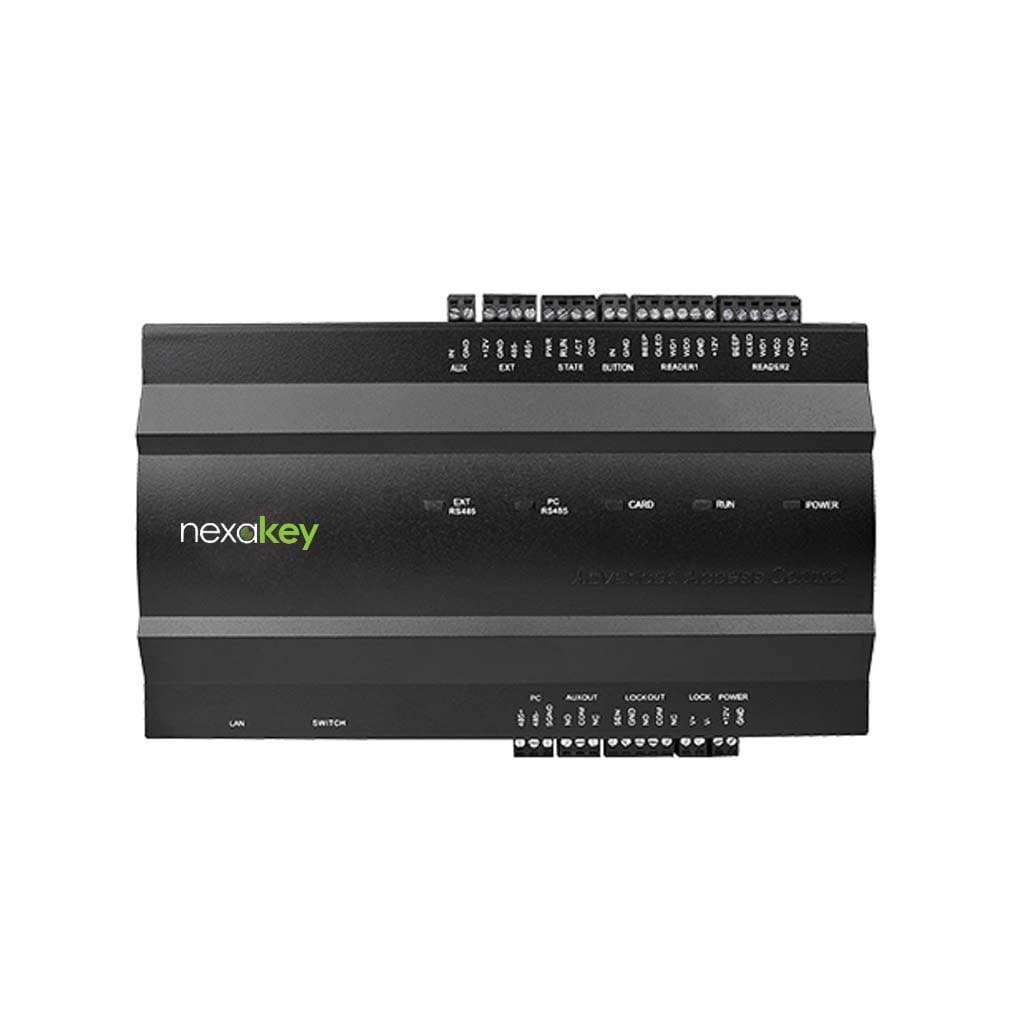

The Nexakey NX-C260 Two Door Controller is a professional IP-based access control panel designed to centrally manage and secure two independent entry points from a single networked unit. Purpose-built for corporate offices, government buildings, hospitals, educational institutions, factories, and commercial premises across Bangladesh, the NX-C260 delivers enterprise-grade door security, advanced access control logic, and seamless integration with existing RFID reader infrastructure — all within a compact, cost-effective controller. Unlike standalone terminals, the NX-C260 two-door access control panel operates as a dedicated controller, connecting to external Wiegand-compatible card readers, biometric terminals, and electric locks to create a centralized, scalable security architecture. This separation of reader and controller significantly enhances tamper resistance, since the controller is installed in a secure, out-of-reach location while readers are placed at entry points.
The NX-C260 communicates over TCP/IP and RS485, enabling real-time online integration with access management software for centralized user management, event logging, and remote door control. Data is preserved in onboard memory even during network interruptions or power loss, ensuring zero attendance or access event is ever lost. The controller supports Wiegand WG26/WG34 reader input, making it compatible with the full range of Nexakey, ZKTeco, and third-party card readers and biometric terminals already deployed in Bangladesh.
Built-in advanced access control functions include anti-passback, first-card opening, multi-card opening, and duress password entry — features critical for environments requiring strict access discipline across controlled zones. The auxiliary relay outputs can be programmed to trigger alarms, control lighting, or interface with intrusion detection panels, extending the NX-C260's functionality well beyond simple door control. With support for high user card capacity and a large transaction log, the Nexakey NX-C260 two-door controller is scalable for both growing SMEs and established multi-floor enterprises. Its standard DIN rail or wall-mount installation simplifies deployment in IT rooms, server cabinets, or access control enclosures. USB and RS485 interfaces provide additional flexibility for software configuration and firmware upgrades without specialized tools.
Available from CSL Systems, the authorized Nexakey distributor in Bangladesh, with nationwide installation support and after-sales service.
CSL Systems has been Bangladesh's authorized Nexakey distributor. Every Nexakey NX-C260 Two Door Controller is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
Specifications
| Attribute / Feature | Specification Details |
| Specification | Value |
| Model | Nexakey NX-C260 |
| Controller Type | Two Door Access Controller |
| Supported Doors | 2 Doors |
| Reader Support | Up to 8 Readers |
| Reader Types | RS485 & 26-bit Wiegand Readers |
| Cardholder Capacity | 20,000 Users |
| Event Log Capacity | 100,000 Records |
| Communication | TCP/IP |
| Lock Outputs | 2 Form-C Relay Outputs |
| Auxiliary Outputs | 2 Auxiliary Outputs |
| Input Voltage | 9.6V – 14.4V DC |
| Application | Offices, Commercial Buildings, Educational Institutions, Government Facilities |
