Description

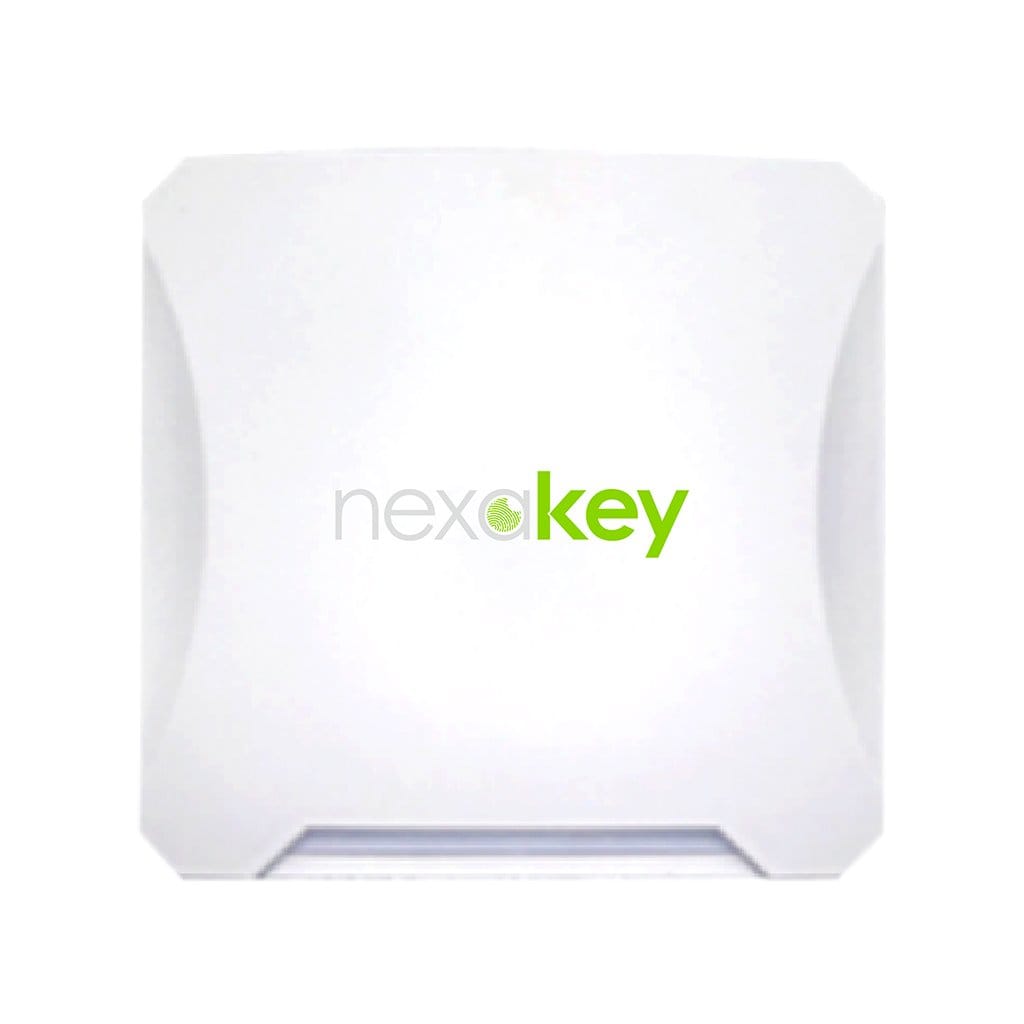

The NexaKey NX-UHF10 Pro Third-Generation UHF Reader is a high-performance long-range RFID reader engineered for vehicle access management, parking barrier control, and personnel tracking at factory gates, corporate campuses, commercial car parks, and warehouse entry points across Bangladesh. As a third-generation UHF reader built on ZKTeco's proven UHF platform, the NX-UHF10 Pro delivers significantly more stable recognition performance, longer reading distance, and faster identification speed than previous-generation long-range readers — making it the benchmark choice for facilities upgrading from barrier-loop or short-range RFID gate control.
The defining performance advantage of the NX-UHF10 Pro is its 10–20 metre reading range, allowing vehicles to be identified and access decisions made well before they reach a gate or barrier — eliminating the stop-and-scan bottleneck that causes queue build-up at factory shift changes, gated community entrances, and high-volume car parks. Operating on passive UHF card technology (EPC Global Class 1 Gen2 / ISO18000-6C), the system requires no battery in the vehicle tag, reducing ongoing maintenance costs significantly compared to active RFID systems.
Two configurable working modes give security administrators complete operational flexibility: Always Read mode (default) for continuous traffic flow at open lanes, and Trigger to Read mode for controlled, event-based activation at barrier-equipped entry points. Both modes output via Wiegand 26 (default, with alternative Wiegand formats supported) and RS485 communication, ensuring seamless integration with any existing access control panel, parking management system, or ZKTeco-compatible platform already deployed at your facility.
The NX-UHF10 Pro's 7-colour LED status indicator (red, green, blue, yellow, cyan, purple, white) provides instant visual confirmation of reading status — visible from the vehicle without driver interpretation — and its IP66 weatherproof rating ensures consistent performance in Bangladesh's monsoon season, dusty industrial environments, and high-humidity outdoor gate installations.
Built for serious access control deployments with an operating temperature range of -20°C to +65°C, the NX-UHF10 Pro is suited for year-round outdoor service without performance degradation.
Specifications
| Attribute / Feature | Specification Details |
| Specifications | Value |
| Model | NX-UHF10 Pro |
| Reading Distance | 6 – 40 meters |
| Antenna Gain | 8-12 dBi |
| Dimensions | 180mm * 180mm * 30mm |
| Weight | 1.2 kg |
| Power | <1W |
| Frequency | 865-868 MHz |
| Protection Rating | IP66 (Weatherproof) |
| Certifications | CE, FCC |
