Description

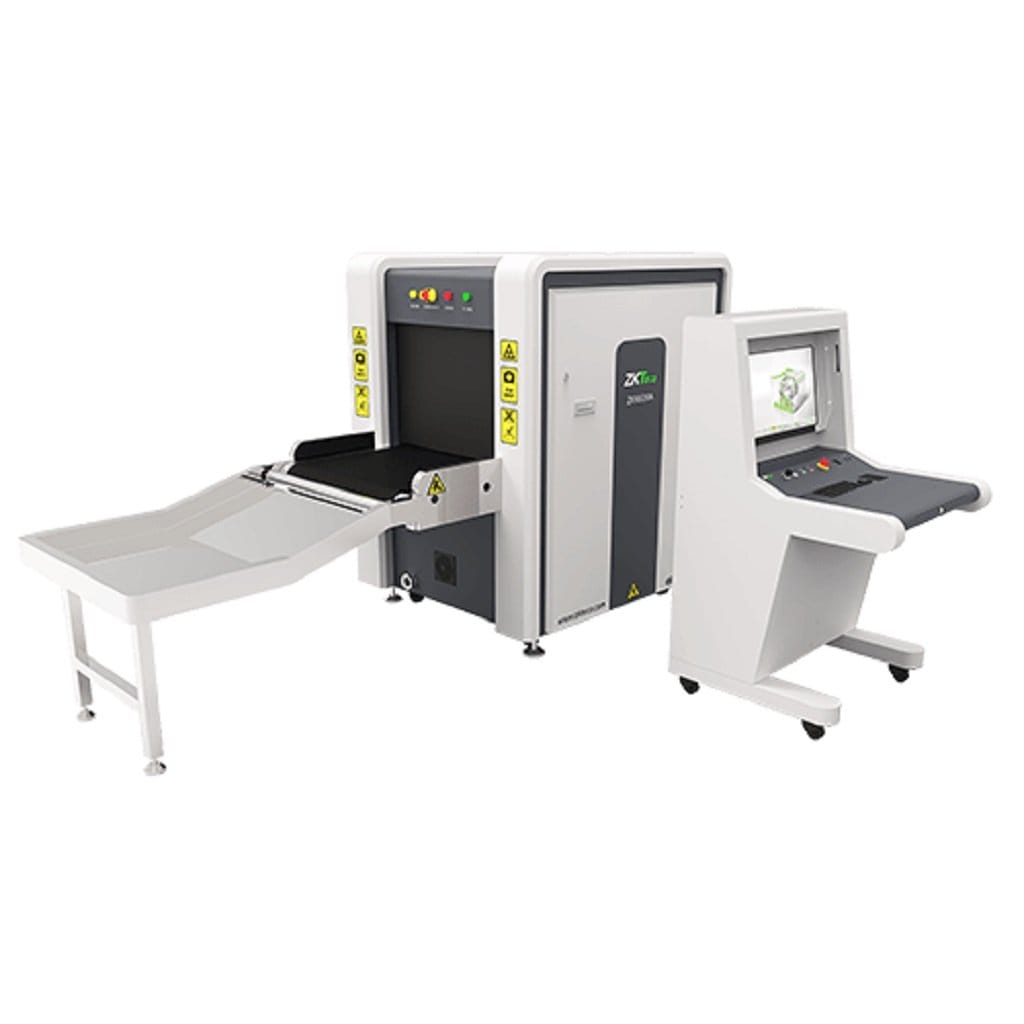

ZKX6550A is a single-energy X-ray screening system that provides a highly economical visual inspection solution for carry-on luggage. ZKX6550A uses a reliable, high-quality X-ray generator. With the superb image algorithm, ZKX6550A could offer a clear scanning image, which allows operators to identify potential threat items visually. ZKX6550A has an innovative biometric identification function for operators, improving the security of the system and preventing operators from forgetting passwords. With ergonomic modern design, ZKX6550A could help operators to identify suspicious items fast and accurately.
CSL Systems has been Bangladesh's authorized ZKTeco distributor. Every ZKTeco ZKX6550A Single Energy X-ray Inspection System is 100% genuine with original firmware and official manufacturer warranty, backed by trained engineers for installation, configuration and RMA support nationwide. Bulk and corporate orders are welcome.
Specifications
| Attribute / Feature | Specification Details |
| Tunnel Size | W655mm × H505mm |
| Speed | 0.20 m/s |
| Height of Transmission Belt | 700 mm |
| Maximum Load | ≤180 kg (Adequate distribution) |
| Wire Resolution | 38AWG |
| Space Definition | Horizontal Φ1.0mm Vertical Φ2.0mm |
| Penetrate Definition | 34 AWG |
| Penetration | 10mm steel board |
| Monitor | 21.5 inch LED |
| System Function | High density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training. |
| Film Safety | ASA/ISO1600 standard of film safety |
| Tube Voltage | 100KV |
| Cooling | Seal oil cooling/ 100% |
| Single Inspection Dosage Rate | ≤1.0 μ Gy |
| Radiation Leak Dosage | 0.1 μ Gy/h (5cm from the surface) |
| Size | L2120mm × W980mm × H1381mm |
| Package Size | L2240mm × W1170mm × H1755mm |
| Console Desk Size | L805mm × W900mm × H1320mm |
| Package Weight | 640KG+100KG (Console desk) |
| Power Consumption | 1 kVA |
| Noise | 53.8 dB (A) |
