Description
Brand
Dahua
Model

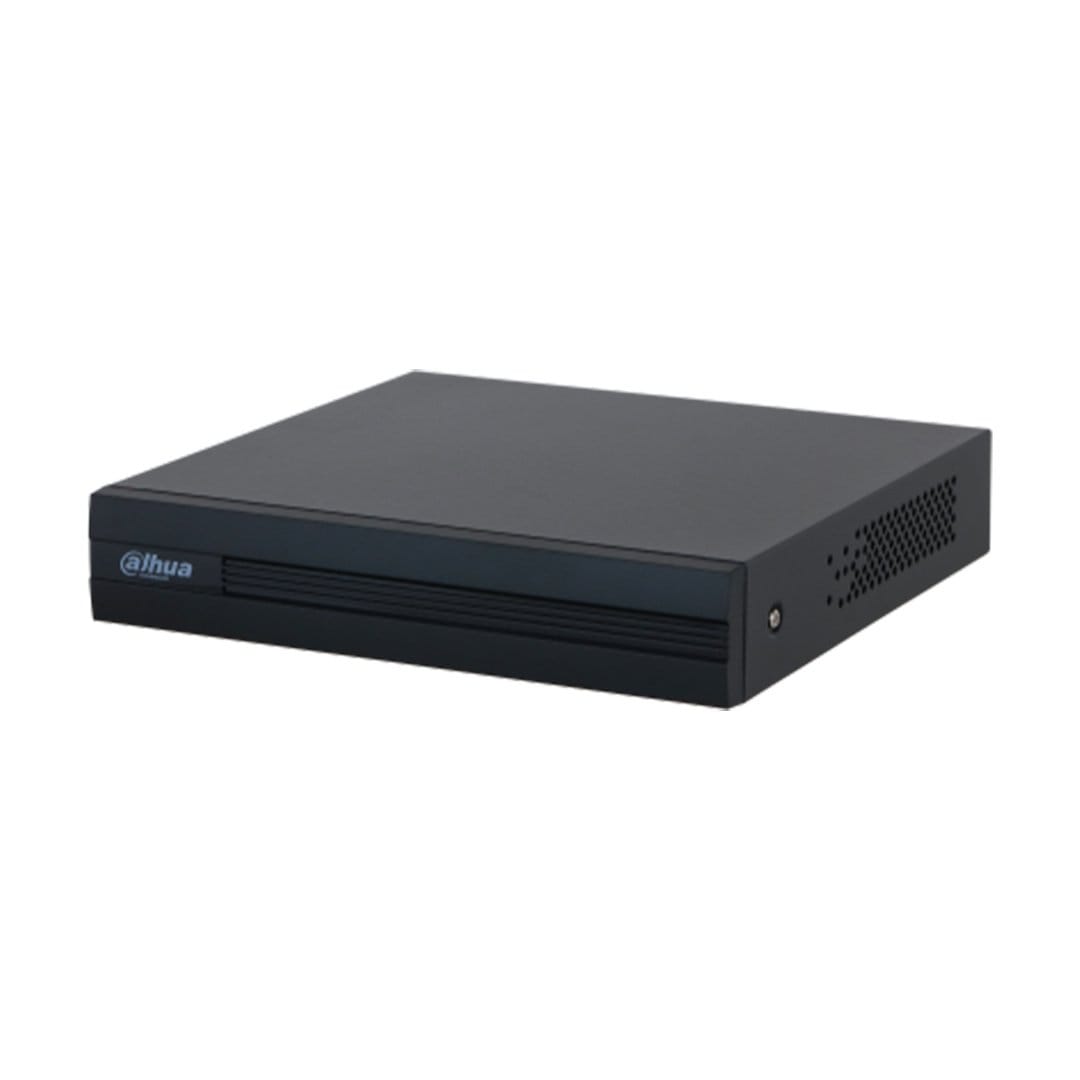

Dahua DH-XVR1B08-I
Type
XVR
Video Input Channel (BNC)
8 Channel, BNC
Video Compression/Format
H.265+/H.265
Video Output (VGA)
1920 x 1080, 1280 x 1024, 1280 x 720
Video Output (HDMI)
1920 x 1080, 1280 x 1024, 1280 x 720
Video Recording Res.
1920 x 1080
Max. Video Recording Res.
1920 x 1080
Video Bit Rate
32 kbps – 4096 kbps
Analog & HD-TVI Video Input
8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Audio Input Channel (RCA)
1-channel RCA
Audio Compression
G.711a; G.711u; PCM
Audio Output Channel
1-channel RCA
Two way Audio
Yes
Audio Bit Rate
64 kbps
Frame Rate
PAL: 1 fps/s-25 fps/s, NTSC: 1 fps/s-30 fps/s
Stream Type
Dual Stream
Dual Stream Support
Yes
Synchronous Playback
1/4/9
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; UPnP; IP Filter;FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
6TB
Max. Storage Support
6TB
Network Interface (RJ45)
1
USB Port
Rear: 2 x USB 2.0
CVBS Input
Yes
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
40 Mbps
Interoperability
ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
Video Detection
General; Motion Detection; Intelligent; Alarm
Backup Storage
USB device and network
Operating System.
Embedded Linux
Power Supply
12 VDC, 1.5 A
Approx. Power Consumption
7 W
Dimensions
199.0 x 202.9 x 41.5 mm
Weight (Kg)
0.56 kg (Net Weight)
Smart Phone Supported
Android, iOS
Feature
Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback (motion detection).SMD Plus by Recorder: 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change. Up to 10-ch IP camera inputs and each channel supports up to 6 MP. Max 40 Mbps incoming bandwidth.
Others
Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264. Multi-screen Display: When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Samsung. Encoding Capacity: Main Stream: 8-channel: the 1st channel 1080N/720p@(1 fps-25/30 fps), others 1080N/720p@(1 fps-15 fps); 960H/D1/CIF@(1 fps25/30 fps) Sub stream: 8-channel: CIF@(1 fps-7 fps). Camera Input: 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. ,2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps..Network Port:1x(10/100 Mbps Ethernet port, RJ-45).
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
