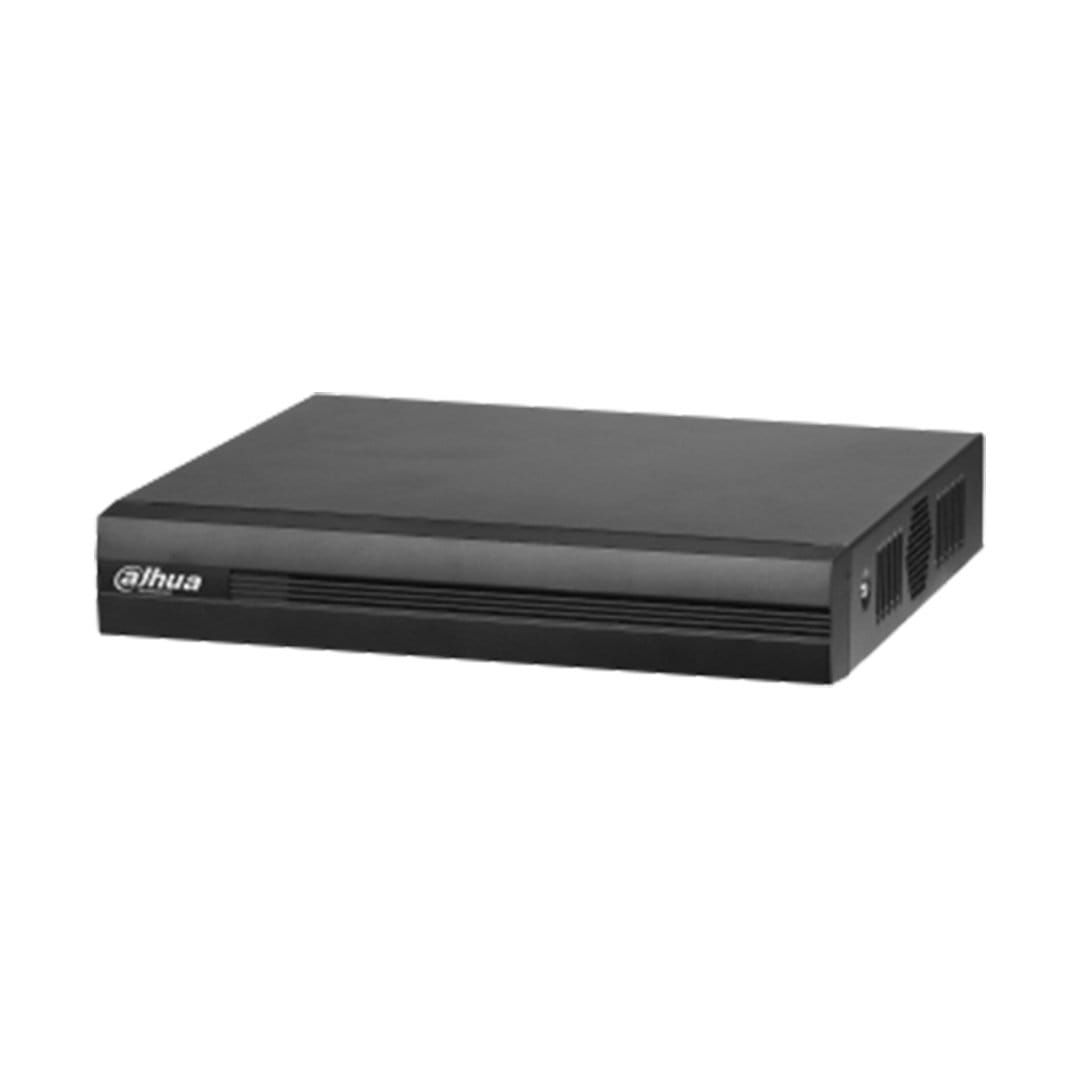

Dahua DH-XVR1B16-I 16 Channel XVR

7,500৳

Key Features
  • Dual Stream Support – Yes
  • Number HDD Interface (SATA) – 1 SATA
  • Video Recording Res. – 1920 x 1080
  • Max. Storage Support – 16TB
Brand
Dahua

Model
Dahua DH-XVR1B16-I

Type
XVR

Video Input Channel (BNC)
16 Channel, BNC

Video Compression/Format
H.265+; H.265; H.264+; H.264

Video Output (VGA)
1920 x 1080, 1280 x 1024, 1280 x 720

Video Output (HDMI)
1920 x 1080, 1280 x 1024, 1280 x 720

Video Recording Res.
1920 x 1080

Max. Video Recording Res.
1920 x 1080

Video Bit Rate
32 kbps – 6144 kbps

Analog & HD-TVI Video Input
16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Audio Input Channel (RCA)
1-channel RCA

Audio Compression
G.711a; G.711u; PCM

Audio Output Channel
1-channel RCA

Two way Audio
Yes

Audio Bit Rate
64 kbps

Frame Rate
PAL: 1 fps/s – 25 fps/s, NTSC: 1 fps/s – 30 fps/s

Stream Type
Main Stream, Dual Stream, Sub Stream

Dual Stream Support
Yes

Synchronous Playback
1/4/9/16

Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Number HDD Interface (SATA)
1 SATA

Max HDD Support (GB,TB)
16TB

Max. Storage Support
16TB

Network Interface (RJ45)
1

USB Port
2 x USB 2.0

Incoming Bandwidth
64Mbps

Outgoing Bandwidth
64Mbps

Interoperability
ONVIF 21.06; CGI Conformant

Video Detection
General, motion detection, alarm

Backup Storage
USB device and network

Operating System.
Embedded Linux

Power Supply
12 VDC, 2 A

Approx. Power Consumption
10W

Dimensions
260 x 231.4 x 47.6mm

Weight (Kg)
0.89 kg

Smart Phone Supported
Android, iOS

Feature
General Alarm: Motion detection, video loss, tampering Anomaly Alarm: No disk, disk error, low space, offline, ip conflict, MAC conflict Alarm Linkage:Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email. Playback Mode: Instant playback, general playback, event playback, tag playback. H.265+/H.265 dual-stream video compression. Supports Full-channel AI-Coding. Supports HDCVI/AHD/TVI/CVBS/IP video inputs . Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth . Long transmission distance over coax cable. Up to 8 channels video stream (analog channel) SMD Plus

Others
Camera Input: 1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC. Encoding Capacity:Main Stream: the 1st channel 1080N/720p (1 fps-25/30 fps), others 1080N/720p (1 fps-15 fps); 960H/D1/CIF(1 fps-25/30 fps) Sub stream: CIF (1 fps-7 fps). Third-party Camera Access:ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung. Browser: Chrome, IE9 or later, Firefox. Operating Temperature: -10 degree C to +55 degree C Operating Humidity: 0%-90% (RH).Certifications: FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Warranty Details
1 year

Country Of Origin
China

Made in/ Assemble
China
