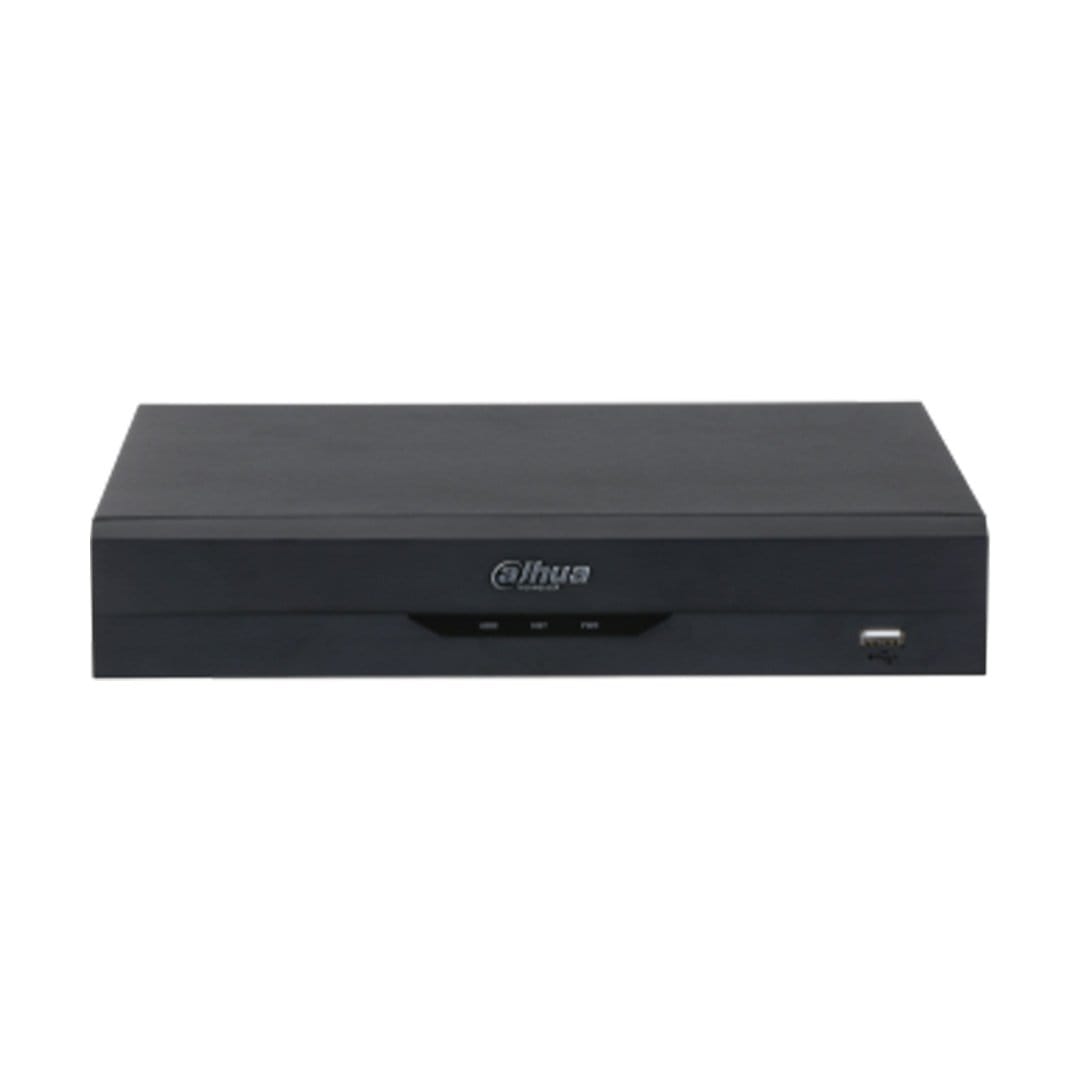

Dahua DHI-NVR1104HS-P-S3/H 04-Channel Compact 1U Lite POE NVR

Original price was: 8,690৳ .Current price is: 7,920৳ .

Key Features

  • Model: DHI-NVR1104HS-P-S3/H
  • Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
  • Video : Smart H.265+/H.265/Smart H.264+/H.264
  • PoE: 8 ports (IEEE802.3at/af)
  • Power Supply : DC48V/53V, 1.25A/1.22A
Type PoE NVR Switch
Port HDD : 1 front USB 2.0 port, 1 rear USB 2.0 port
USB : 1
HDMI : 1
VGA : 1
RCA Input : 1
RCA Output : 1
Alarm : None
Network : 1 RJ–45 port (10/100 Mbps), 4 RJ–45 ports with PoE power supply (10/100 Mbps)
Network Standard Network Protocol : HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P
Mobile Phone Access : iDMSS(iOS), gDMSS(Android)
Access Standard : ONVIF(profile T/profile S/profile G),CGI,SDK
Browser : Chrome, IE9 or above, Firefox
Access Method Access Channel : 4 channels
Network Bandwidth : 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability : 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS)
Video Output : 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Multi-screen Display : 1/4
Third Party Camera Access : Onvif, RTSP
Advanced Functions Multi-channel Playback : Up to 4 channels playback
Record Mode : Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage : Local HDD and network
Backup : USB device
Playback Function : 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
General Alarm : Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm : Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage : Video recording, snapshot, log, preset, tour
Video : Smart H.265+/H.265/Smart H.264+/H.264
Audio : PCM/G711A/G711U/G726/AAC
Main Processor : Industrial-grade embedded processor
Operating System : Embedded Linux
Operation Interface : Web/operating in local GUI
USB: 2 ports (1 Rear USB2.0, 1 Front USB2.0)
Internal HDD: 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Interoperability: ONVIF 2.4, SDK, CGI
Compression: Smart H.265+/H.265/Smart H.264+/H.264
Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Record Rate: 80Mbps
Bit Rate: 16Kbps ~ 20Mbps Per Channel
MAC Address Table 2K
Environment Operating Conditions: -10°C to +55°C (+14°F to +131°F), 86–106kpa
Storage Conditions: 0°C to +40°C (+32°F to +104°F), 30–85% RH
Hardware Features
Interface 1x HDMI, 1x VGA, 1x RJ-45 port (10/100/1000Mbps)
Power Supply Single, DC48V/2A
Power Consumption: NVR: <5.8W (without HDD)
PoE: Max 25.5w for single port, 80w in total
Dimensions (L x W x H) Compact 1U, 260 mm × 224.9 mm × 47.6 mm
(10.2″ × 8.9″ × 1.9″)
Weight Net Weight: 0.8 kg (1.76 lb) (without HDD)
Gross Weight: 1.6 kg (3.53 lb) (without HDD)
Manufacture Warranty
Warranty 1 Year
