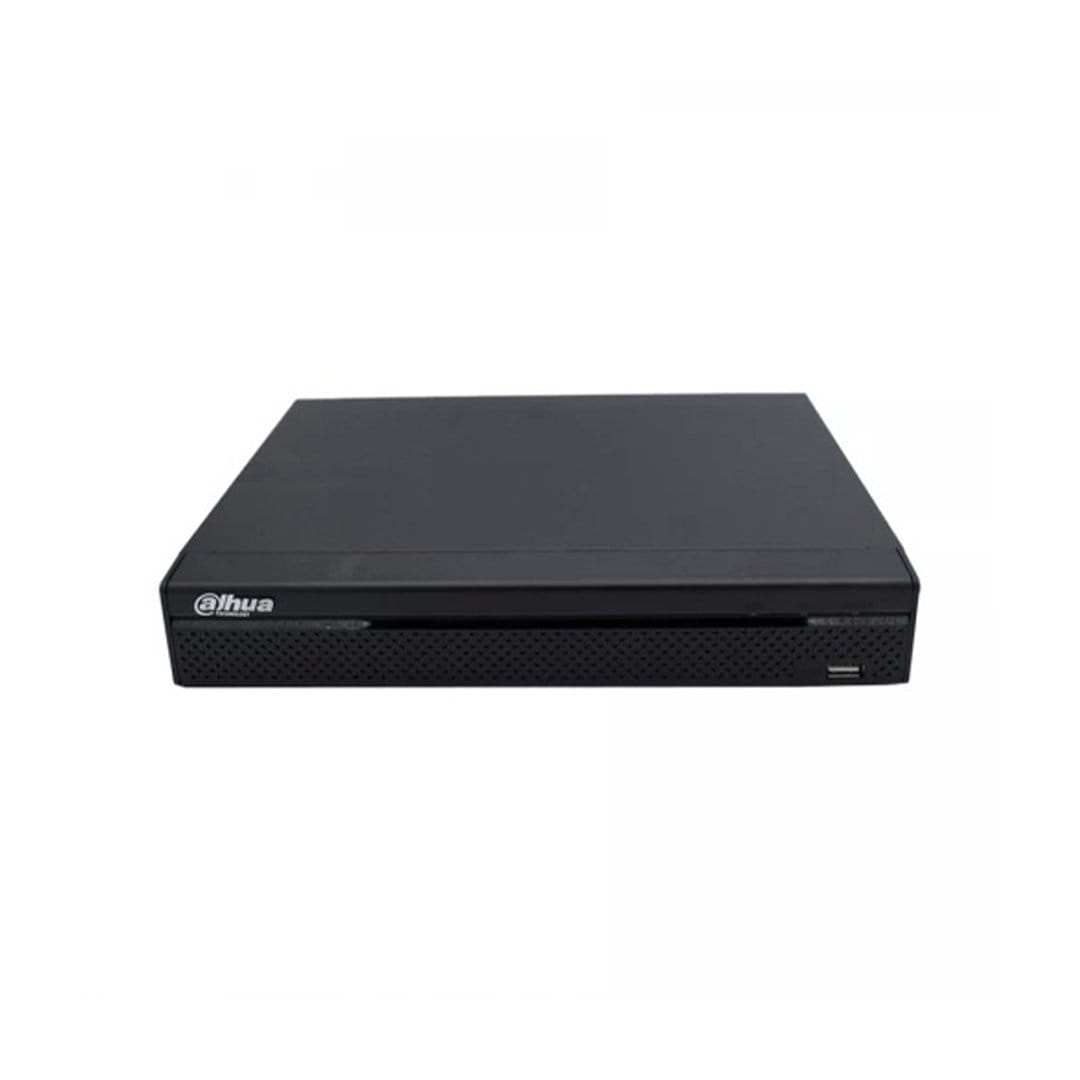

Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder (NVR)


Key Features

  • Model: NVR1108HS-S3/H
  • 8 channel max, up to 8MP resolution
  • 80Mbps record rate, H.265/H.264
  • VGA/HDMI output 1080P
  • 1 SATA port, up to 8 TB HDD
Main Processor Embedded Processor
Interface Web/operating in local GUI
Resolution 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capacity 1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or
2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or 4–
Multi-Screen Display 1 / 4 / 8 /9
Compression Video: Smart H.265+/H.265/Smart H.264+/H.264
Audio: PCM/G711A/G711U/G726/AAC
Resolution 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Playback And Backup
Sync Playback Up to 8 channels playback
Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
Backup Mode USB device
Smart Phone IDMSS (iOS), GDMSS (Android)
HDD Mode 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Auxiliary Interface
USB 1 front USB 2.0 port, 1 rear USB 2.0 port
Power Supply DC12V, 1.5A
Power Consumption The total output of NVR is ≤ 10W (without HDD)
Component Environment
Storage Conditions Local HDD and network
Dimensions Product Dimensions: 260 mm×225 mm×47.6 mm (W × L × H)
Box Dimensions: 87 mm×331 mm×312 mm (W × L × H)
Net Weight 0.81 kg (1.79 lb)
Gross Weight 1.38 kg (3.04 lb)
Manufacturing Warranty 01-year Warranty
