Description

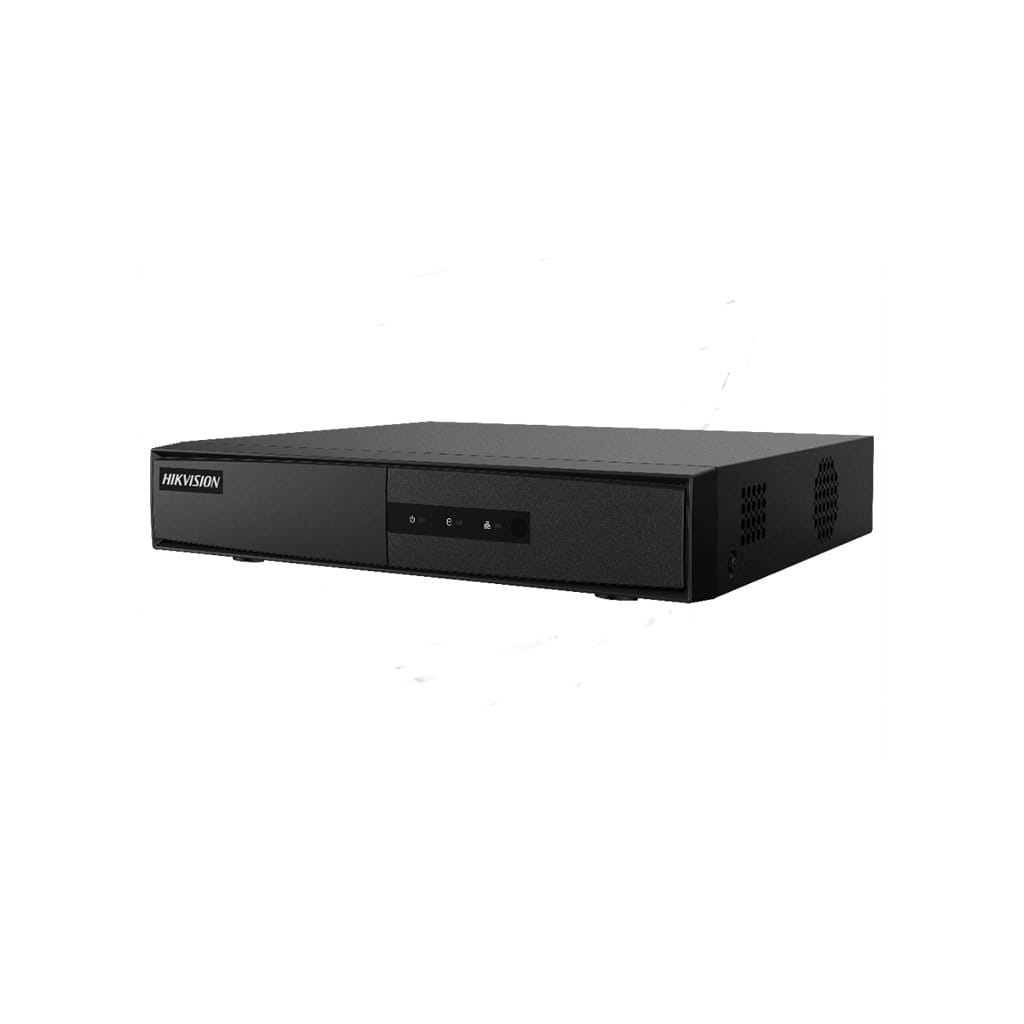

The Hikvision DS-7204HGHI-F1 is a compact, efficient, and versatile 4-channel Turbo HD DVR that supports hybrid signal input, real-time recording, and advanced video compression. Designed for small-scale surveillance systems, it’s an excellent choice for those looking for reliable security on a budget.
Digi-Mark offers this DVR model with:
“Perfect DVR for my 4-camera home setup. Got it from Digi-Mark with quick delivery and setup.” – Mr. Noman, Uttara
“Works flawlessly with my existing analog cameras. Remote view is smooth through the Hik-Connect app.” – Jahanara S., Chittagong
Q: Can I use this DVR with old analog cameras? Yes. It supports CVBS input which is compatible with traditional analog CCTV cameras.
Specifications
| Attribute / Feature | Specification Details |
| Model | DS-7204HGHI-F1 |
| Video compression | H.264+/H.264 |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Video bit rate | 32 Kbps to 4 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| IP video input | Up to 960p resolution |
| Analog video input | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | Reuse the first audio input |
| Synchronous playback | 4-ch |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 8 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without HDD) | ≤ 1 kg (2.2 lb) |
