Description

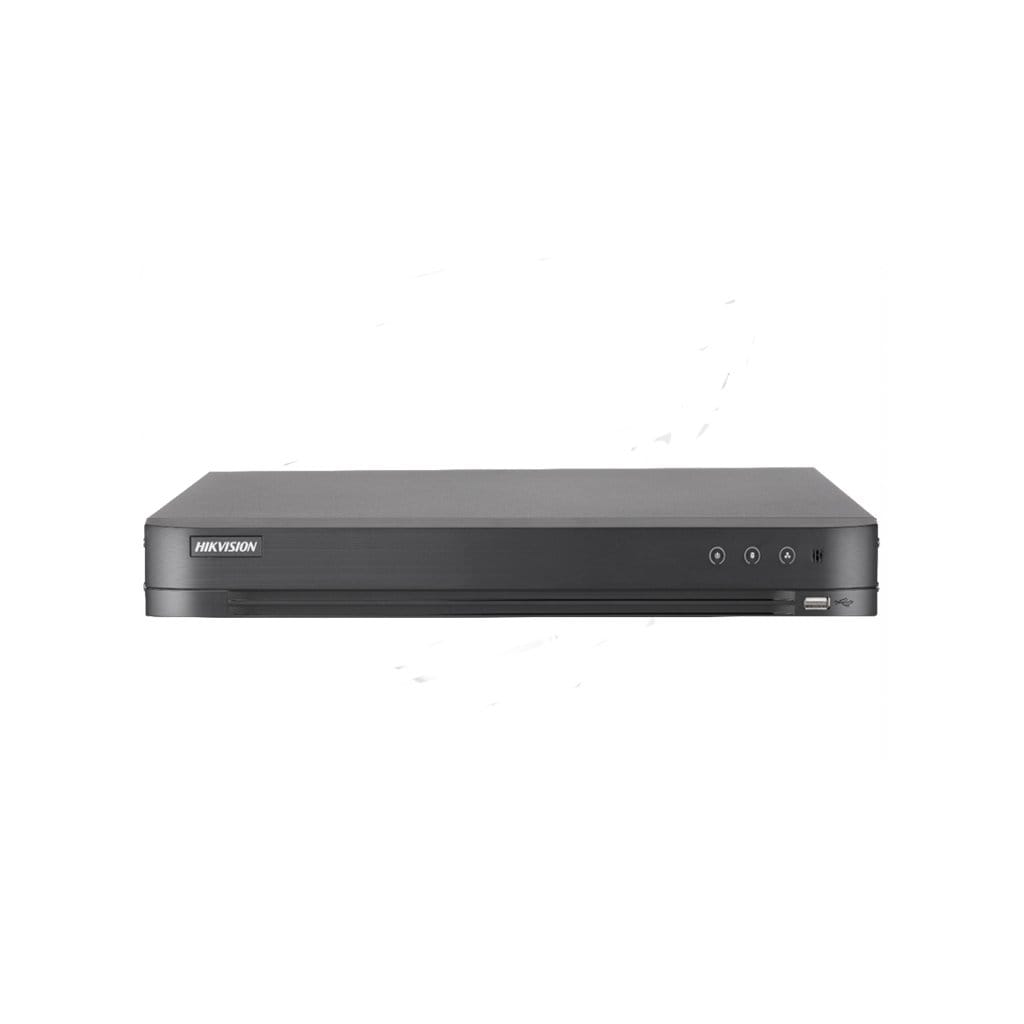

The Hikvision DS-7232HGHI-K2 is a powerful 32-channel DVR built to handle professional-grade security needs. Featuring advanced H.265 Pro+ compression, up to 18 IP camera support, and hybrid signal input, it offers high performance and efficient video storage—making it ideal for businesses, institutions, and industrial setups across Bangladesh.
Q: How many cameras does this DVR support? A: It supports 32 analog channels and up to 18 IP cameras, allowing hybrid surveillance systems.
Q: Can I view my cameras remotely? A: Yes. You can access live footage or playback anytime via Hik-Connect mobile app or a web browser.
Q: What is the highest resolution it supports? A: It supports up to 5MP resolution for IP cameras and 1080p Lite for analog inputs.
Q: Does it support Coaxitron PTZ control? A: Yes, the DVR supports Coaxitron protocol, allowing control of PTZ cameras via coaxial cable.
Specifications
| Attribute / Feature | Specification Details |
| Model | DS-7232HGHI-K2 |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | 1080p lite/720p/VGA/WD1/4CIF/CIF |
| Video bit rate | 32 Kbps to 4 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| IP video input | 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback | 32-ch |
| Power supply | 12 VDC, 3.2 A |
| Consumption (without HDD) | ≤ 18 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without HDD) | ≤ 2.2 kg (4.9 lb) |
