Description

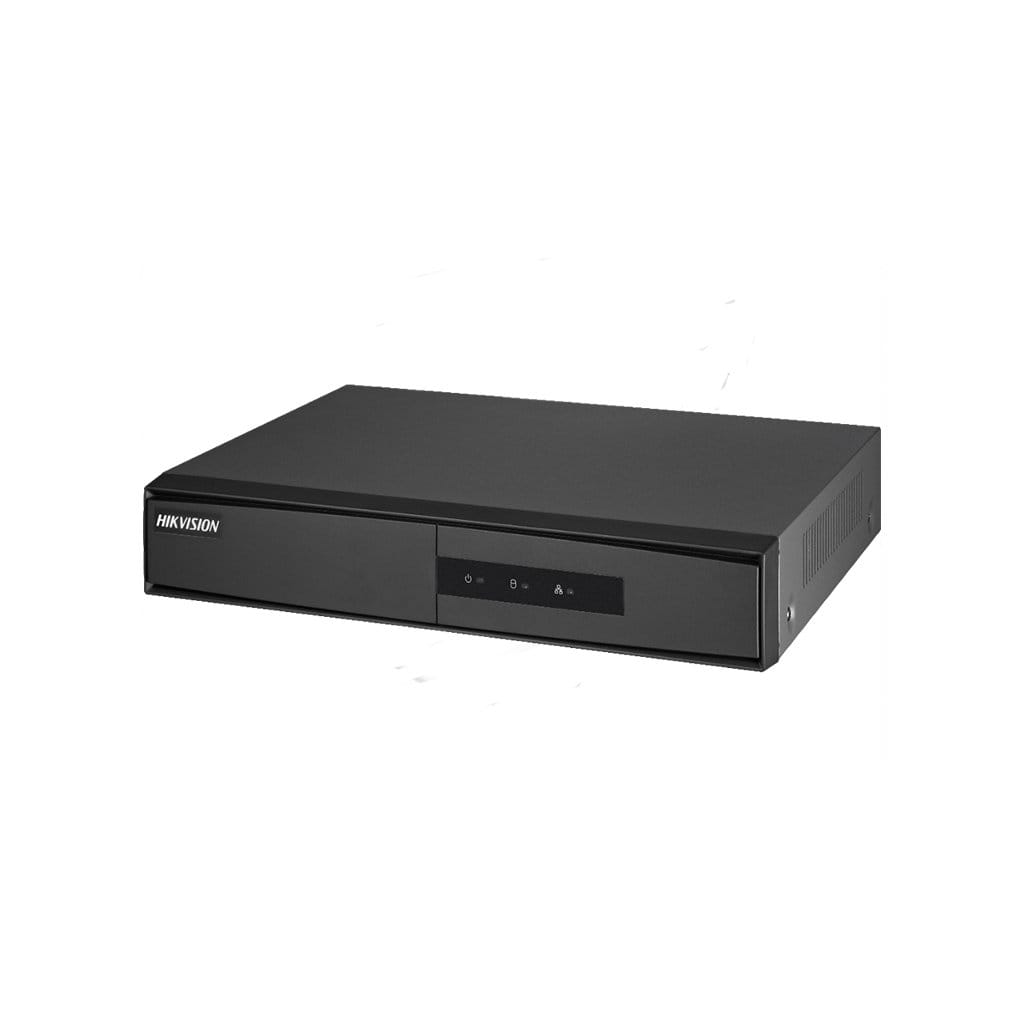

Looking for a high-performance DVR for large-scale security coverage? The Hikvision DS-7216HGHI-F2 is your perfect match. With support for up to 16 analog + 2 IP channels, H.264+ video compression, and dual HDD bays, this DVR ensures 24/7 smooth surveillance with remote access capabilities.
At Digi-Mark, we’ve installed this DVR in over 70+ locations, delivering peace of mind to large properties.
“We use the 7216HGHI-F2 DVR for our school surveillance system. It’s stable, storage is huge, and remote monitoring is flawless.” – Principal S. Rahman, Khulna
“Perfect solution for our garment factory. Digi-Mark team handled everything professionally.” – Azhar Enterprise, Gazipur
Q: How many total cameras can I connect? A: You can connect up to 16 analog + 2 IP (total 18).
Specifications
| Attribute / Feature | Specification Details |
| Model | DS-7216HGHI-F2 |
| Video compression | H.264+/H.264 |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Video bit rate | 32 Kbps to 4 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| IP video input | Up to 960p resolution |
| Analog video input | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | Reuse the first audio input |
| Synchronous playback | 16-ch |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 20 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 380 × 320 × 48 mm (14.9 × 12.6 × 1.9 inch) |
| Weight (without HDD) | ≤ 2 kg (4.4 lb) |
