Description

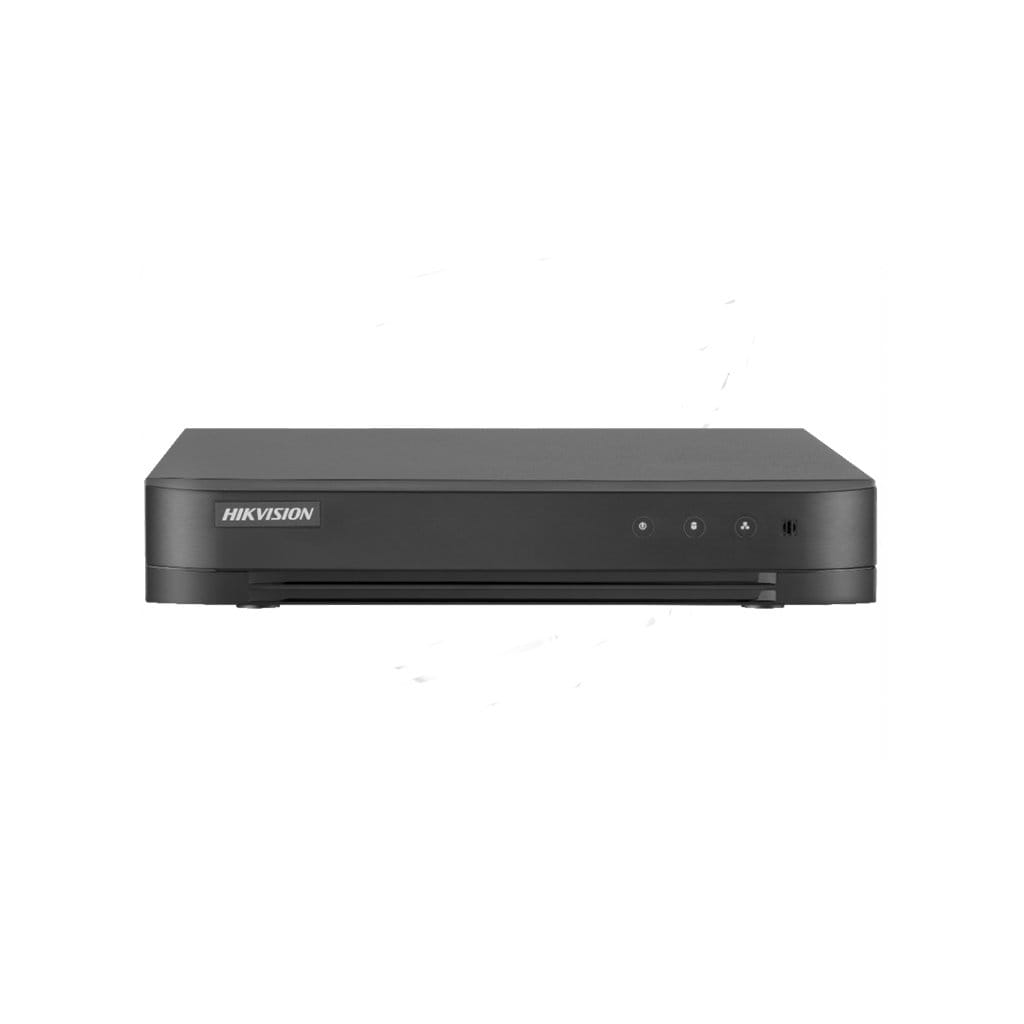

The Hikvision DS-7216HGHI-K1 is a professional-grade 16-channel 1080p Lite DVR equipped with H.265 Pro+ compression and AI-based Motion Detection 2.0. With support for human and vehicle classification, it ensures more accurate alerts by eliminating false alarms caused by irrelevant movements like leaves or shadows. Perfect for businesses, institutions, and smart home surveillance systems across Bangladesh.
Mahmudul – Dhaka: "Excellent performance with human detection alerts. Works perfectly with my existing analog setup." Rina – Chittagong: "Reliable DVR and smooth mobile viewing via Hik-Connect." Sabbir – Gazipur: "H.265 Pro+ compression is great. I saved a lot on storage."
Q: How many total cameras can be connected? A: You can connect 16 analog and up to 18 IP cameras.
Q: What is Motion Detection 2.0? A: It's an AI-powered feature that classifies human and vehicle movements, minimizing false alerts.
Q: Can I view the cameras remotely? A: Yes, you can access live and recorded footage via the Hik-Connect mobile app or browser.
Specifications
| Attribute / Feature | Specification Details |
| Model | DS-7216HGHI-K1 |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | 1080p lite/720p/VGA/WD1/4CIF/CIF |
| Video bit rate | 32 Kbps to 4 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| IP video input | Up to 5 MP resolution |
| Analog video input | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Turbo HD input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback | 16-ch |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 10 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without HDD) | ≤ 1.1 kg (2.4 lb) |
