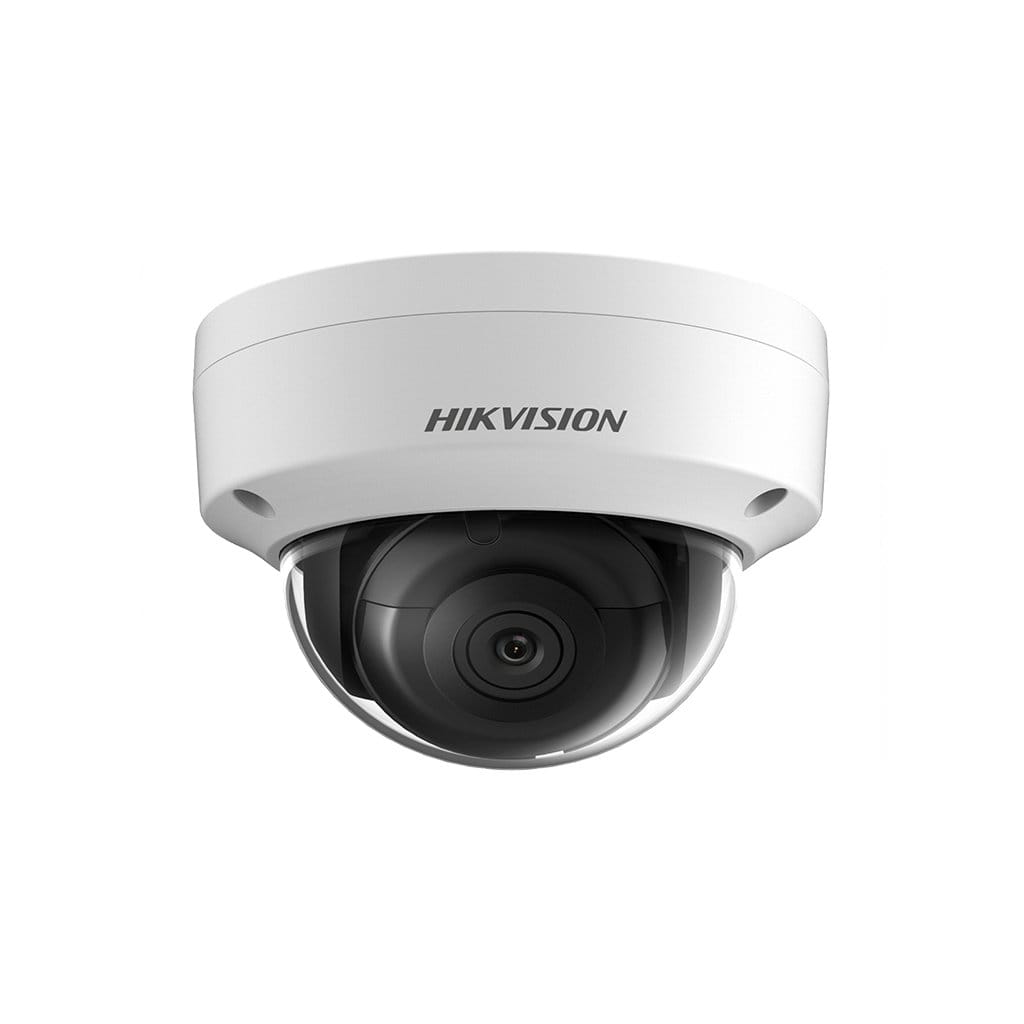

Description
| Camera Feature | ||
| Image Sensor | 1/3″ progressive scan CMOS | |
| Effective Pixels | 4MP | |
| IR Distance | Up to 30 m IR range | |
| Others | Behavior Analysis: Line crossing detection, intrusion detection Line Crossing Detection: Cross a pre-defined virtual line Intrusion Detection: Enter and loiter in a pre-defined virtual region Detection/Recognition: Face Detection | |
| Lens | ||
| Focal Length | 2.8 mm | |
| Aperture | F2.0 | |
| Angle of View | horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° | |
| Physical Specification | ||
| Dimension | Ø111 mm × 82.4 mm | |
| Weight | 360 g | |
| Power | Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) Power Consumption and Current: 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W | |
| Interface | Ø5.5 mm coaxial power plug 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Others | Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) Shutter Speed: 1/3 s to 1/100, 000 s Slow Shutter: Yes Auto-Iris: No Day &Night: IR cut filter Digital Noise Reduction: 3D DNR WDR Digital WDR Angle Adjustment Pan: 0° to 355°, tilt: 0°to 70 Lens Mount: M12 | |
