Description

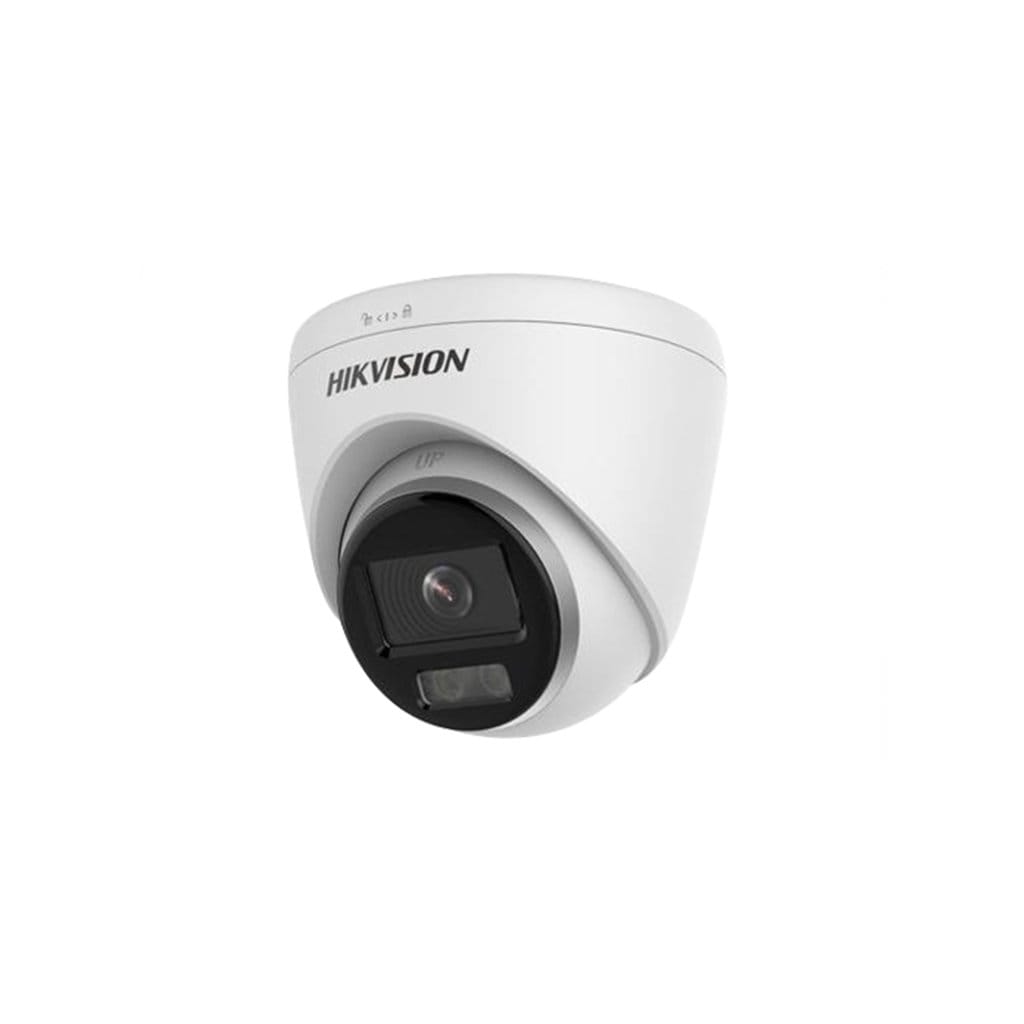

Camera Specifications:
* Image Sensor: 1/2.7″ Progressive Scan CMOS
* Minimum Illumination: 0.001 Lux (Color, F1.0, AGC ON)
* Shutter Speed: 1/3 s to 1/100,000 s
* Angle Adjustment:Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
* Slow Shutter: Yes
* Wide Dynamic Range: 120 dB
* Lens: 2.8 mm (FOV: H 102°, V 54°, D 121°) or 4 mm (FOV: H 80°, V 43°, D 95°)
* Aperture: F1.0
* Lens Mount: M12
* Aperture Type: Fixed
* Depth of Focus: 2.8 mm: 3.1 m to ∞; 4 mm: 3.6 m to ∞
General Specifications:
* Storage Conditions: -30°C to 60°C (-22°F to 140°F), 95% humidity or less (non-condensing)
* Power Supply: 12 VDC ± 25%, PoE (802.3af, Type 1 Class 3), reverse polarity protection
* Power Consumption: 12 VDC, 4.5 W max (0.37 A); PoE (802.3af, 36 V to 57 V), 4.5 W max (0.13 A to 0.08 A)
* Power Interface: Ø 5.5 mm coaxial power plug
* Dimensions: Ø 110 × 100.8 mm (Ø 4.3″ × 4.0″)
* Package Dimensions: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
* Weight: Approx. 350 g (0.8 lb.)
