Description

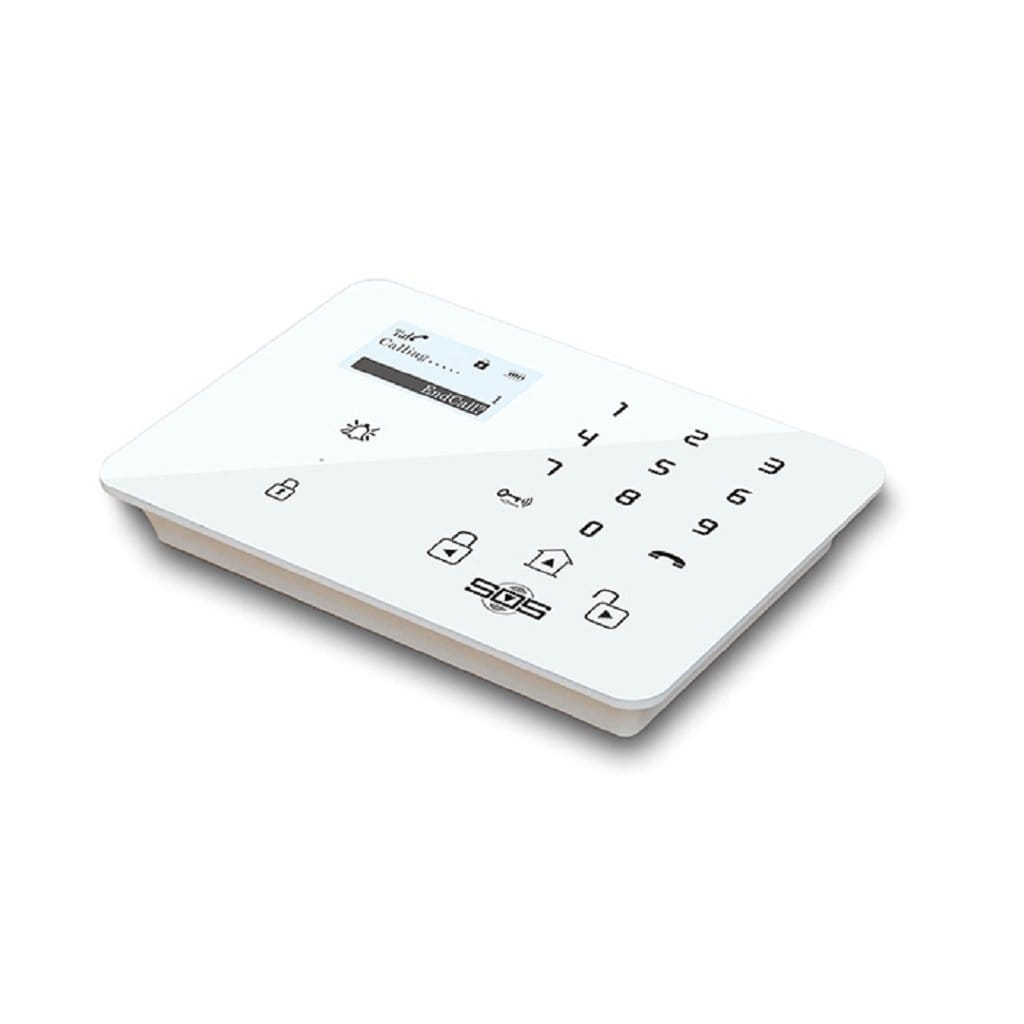

The King Pigeon K9 GSM Alarm System is a next-generation smart security solution designed for homes, offices, shops, and commercial premises. Supporting GSM, 3G, and 4G networks, this advanced alarm system offers 24/7 real-time protection through smart features like zone management, remote control, automatic alerts, and more.
Equipped with a large LCD display, touch keypad, and a user-friendly interface in 10 languages, the K9 system ensures easy programming and seamless operation for all users. With up to 99 defend zones and 999 event log capacity, this powerful alarm panel is built for both simplicity and performance.
Mahfuzul Karim, Homeowner – Dhaka: “Reliable system with great flexibility. I love the remote arm/disarm feature via SMS. Perfect for daily home use.”
Shamima Nahar, Retail Owner – Sylhet: “Easy to install and highly customizable. Great value for money and peace of mind.”
Q: Can I control this alarm system using my phone? Yes. You can arm/disarm or open your door/garage via missed call or SMS.
Specifications
| Attribute / Feature | Specification Details |
| GSM Frequency | Quad-band 850/900/1800/1900 MHz |
| Wireless Zones | 95 |
| Radio Frequency | 433.92MHz for sensors, 315MHz for wireless switch (*optional) |
| Wired Zones | 2, NC/NO dry contact |
| Tamper Switch Zone | 1, at back side of panel |
| Digital Output | 1 relay, NC/NO dry contacts, 3A/240VAC, 5A/24VDC |
| Max. Stored Phone No | 9 phone numbers for alarm SMS & call |
| Max. Remote Control | 9 pcs |
| Event Logs | 999 alarm logs, 99 operation logs |
| Internal Audible Alarm | 95dB |
| CMS | KingCenter CMS-01, or Contact ID CMS Supported (GPRS data) |
| Rated Power Supply | 9~24V DC/1A |
| Power Consumption | 12V input Max. 270mA, Standby 90mA |
| SIM Card | Support 3V SIM Card |
| Antenna | 50 Ω SMA Antenna interface |
| Temperature Range | -20~+60 °C |
| Humidity Range | Relative humidity 90% (condensing free) |
| Backup Battery | 3.7V/900mAH Li-ion rechargeable |
| Enclosure Material | ABS plastic |
| Net Weight | 320 g (0.7 lb) |
