Description

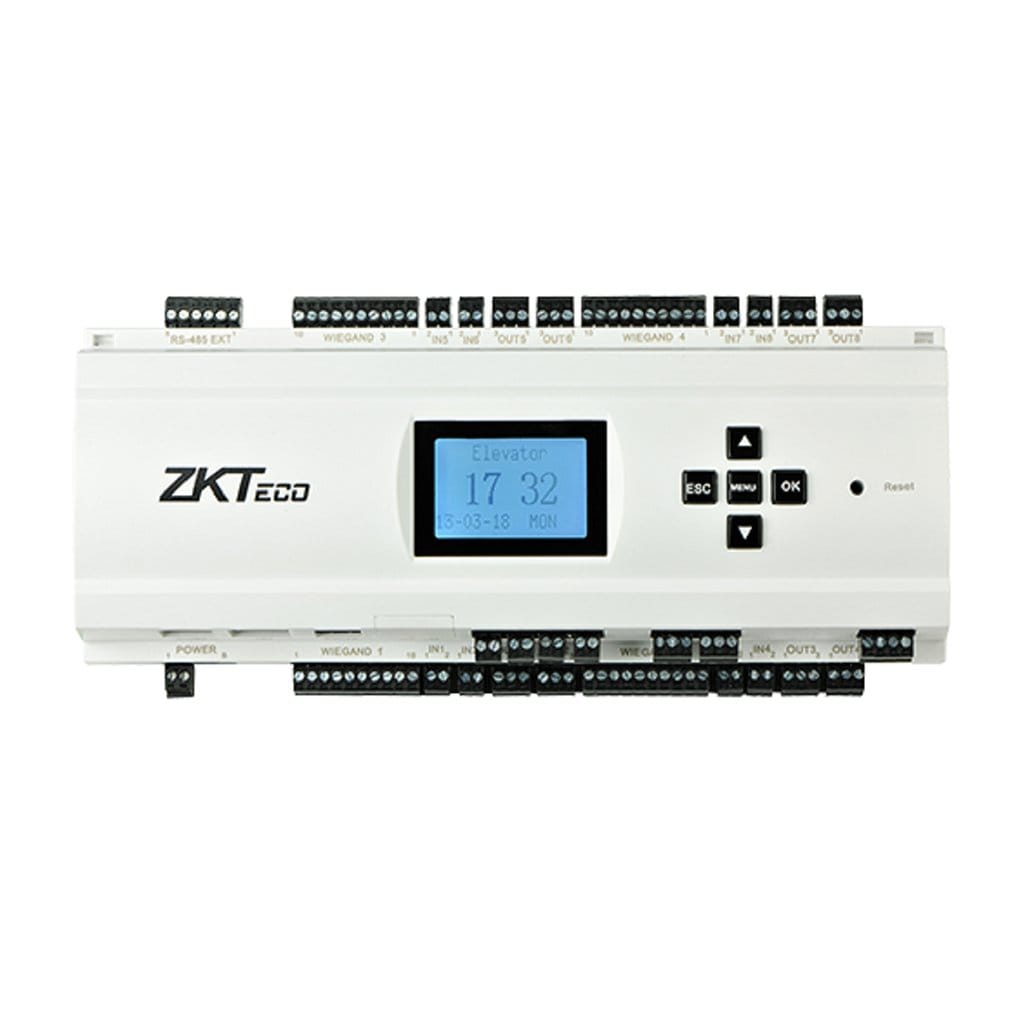

The ZKTeco EC10 Elevator Control Panel is an advanced and cost-effective solution designed to enhance building security by restricting floor access through authorized credentials. Ideal for residential buildings, commercial towers, and secure institutions, the EC10 supports up to 10 floors and can be expanded to 58 floors using EX16 expansion boards.
"We installed the ZKTeco EC10 Elevator Control Panel in our commercial building, and the security has significantly improved. The system is reliable, easy to manage, and integrates smoothly with our access control setup. CSL Systems provided excellent support throughout the process." — Rahman H., Facility Manager, Dhaka
1. Does the EC10 support time-based access control? Yes, it allows floor access based on pre-defined time schedules.
2. Can EC10 panels be connected for larger buildings? Yes, EC10 panels can be daisy-chained to support more floors beyond 58.
3. Is it possible to integrate the EC10 with third-party software? Yes, an SDK is available for integration with other software systems.
Specifications
| Attribute / Feature | Specification Details |
| Model | EC10 |
| Floor Button Control Relay | 10 |
| Fingerprint Capacity | 3000 |
| RFID Card Capacity | 30000 |
| Event Capacity | 100000 |
| Power Supply | 12V DC 1A |
| Communication to PC | TCP/IP, RS485 |
| Communication to EX16 | RS485 |
| Number of supported EX16 | 3 |
| Dimension(L×D×H) | 242mm*95mm*60mm |
| Net weight | 0.8Kg |
| Communication to EC10 | RS485 |
| RS485 address | Set by DIP switch |
