Description

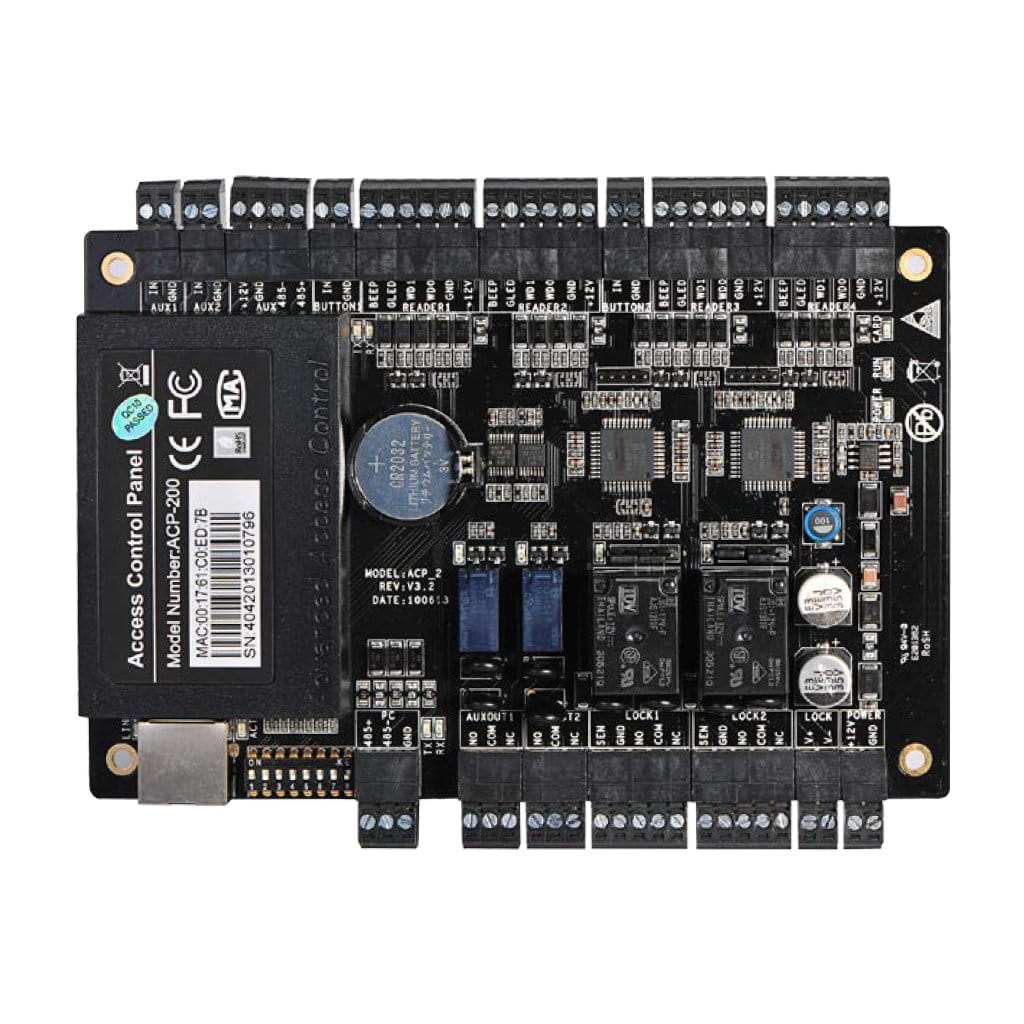

The ZKTeco C3-200 offers flexible, cost-effective access control with support for a wide range of card readers, including stylish and waterproof ZK KR-Series and Wiegand-compatible readers like HID Prox, iClass, and XceedID Multi-Technology.
The ZKTeco C3-200 is ideal for a variety of access control applications, including:
"We’ve installed the ZKTeco C3-200 in multiple office locations, and it has significantly improved our access management. The system is reliable, easy to manage, and integrates well with our existing security setup." — Rahman H., Admin Manager, Dhaka
These certifications ensure the ZKTeco C3-200 meets international safety, quality, and environmental standards.
Q1: How many doors can it control? It can control up to 2 doors and manage entry/exit using card readers or other authentication methods.
Specifications
| Attribute / Feature | Specification Details |
| Number of Doors Controlled | 2 Door |
| Number of Readers Supported | 4 |
| Types of Readers Supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 6 (2 Exit Device, 2 Door Status, 2 AUX) 4 (2-From C Relay for Lock and 2- |
| Number of Outputs | Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 |
| Log Events Capacity | 100,000 |
| Weight | 7.4lbs (3.35kg) |
| Communication | TCP/IP, RS-485 |
| Enclosure | Powder Coated Aluminium |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
| Dimensions ( Board Only) | 6.3in.×4.17in. (160mm×106mm) |
