Description

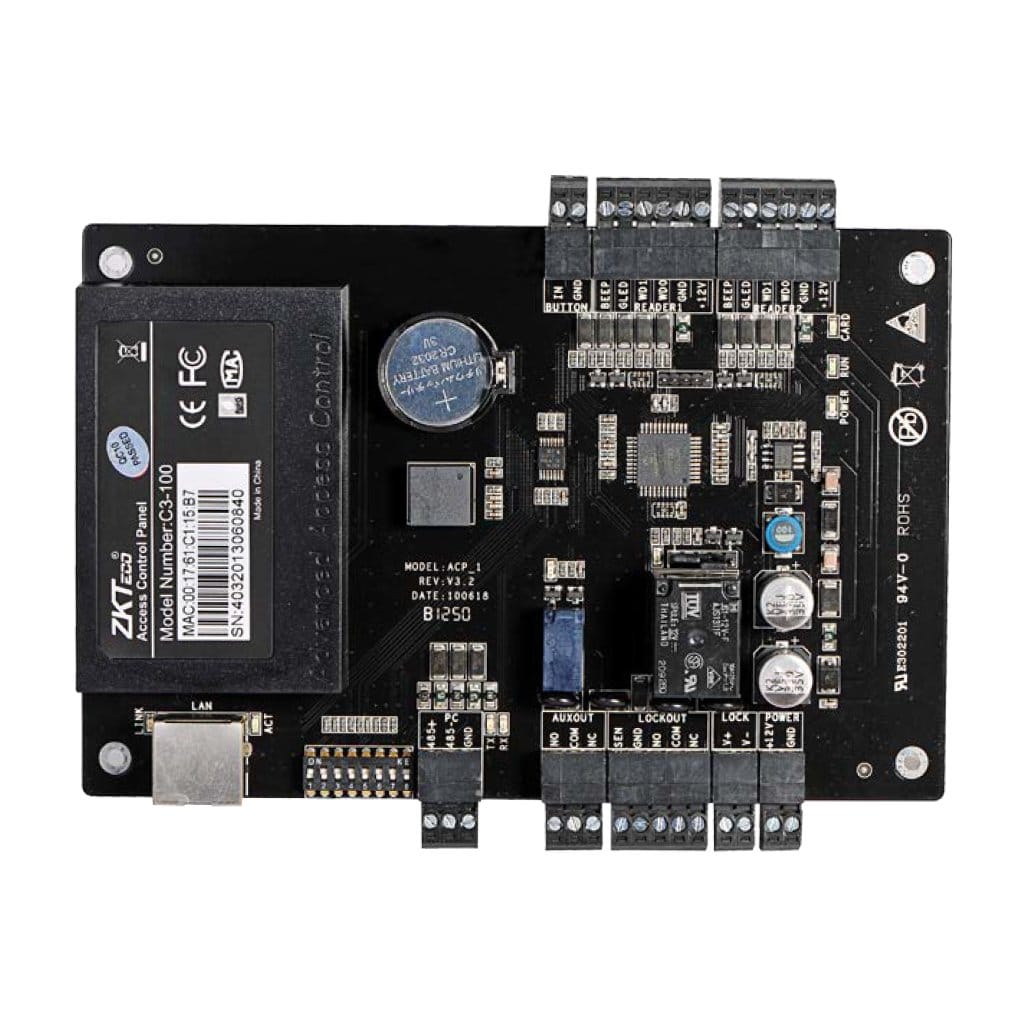

The ZKTeco C3-100 is a high-performance IP-based access control panel designed for managing access to a single door. It supports both TCP/IP and RS-485 communication, allowing for easy integration into modern access control systems. With robust hardware and intelligent firmware, it offers secure, flexible, and scalable access management for businesses of all sizes.
The C3-100 can be installed on any existing network infrastructure and supports both TCP/IP and RS-485 protocols. This allows seamless communication and centralized control, making it ideal for secure environments that require real-time data synchronization and flexible expansion.
Perfect for use in offices, data centers, hospitals, schools, warehouses, and other secure facilities where reliable access control is essential.
Here are the certifications for the ZKTeco C3-100 in short bullet points:
"1. "Reliable and easy to use!" "C3-100 made our office access smooth and secure. Great performance and simple setup." — Rafiq Hasan, Office Admin, Dhaka
Specifications
| Attribute / Feature | Specification Details |
| Number of Doors Controlled | 1 Door |
| Number of Readers Supported | 2 |
| Types of Readers Supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status) 2 (1-From C Relay for Lock and 1- |
| Number of Outputs | Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 |
| Log Events Capacity | 100,000 |
| Weight | 7.4lbs (3.35kg) |
| Communication | TCP/IP, RS-485 |
| Enclosure | Powder Coated Aluminium |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
| Dimensions ( Board Only) | 6.3in.×4.17in. (160mm×106mm) |
