Description

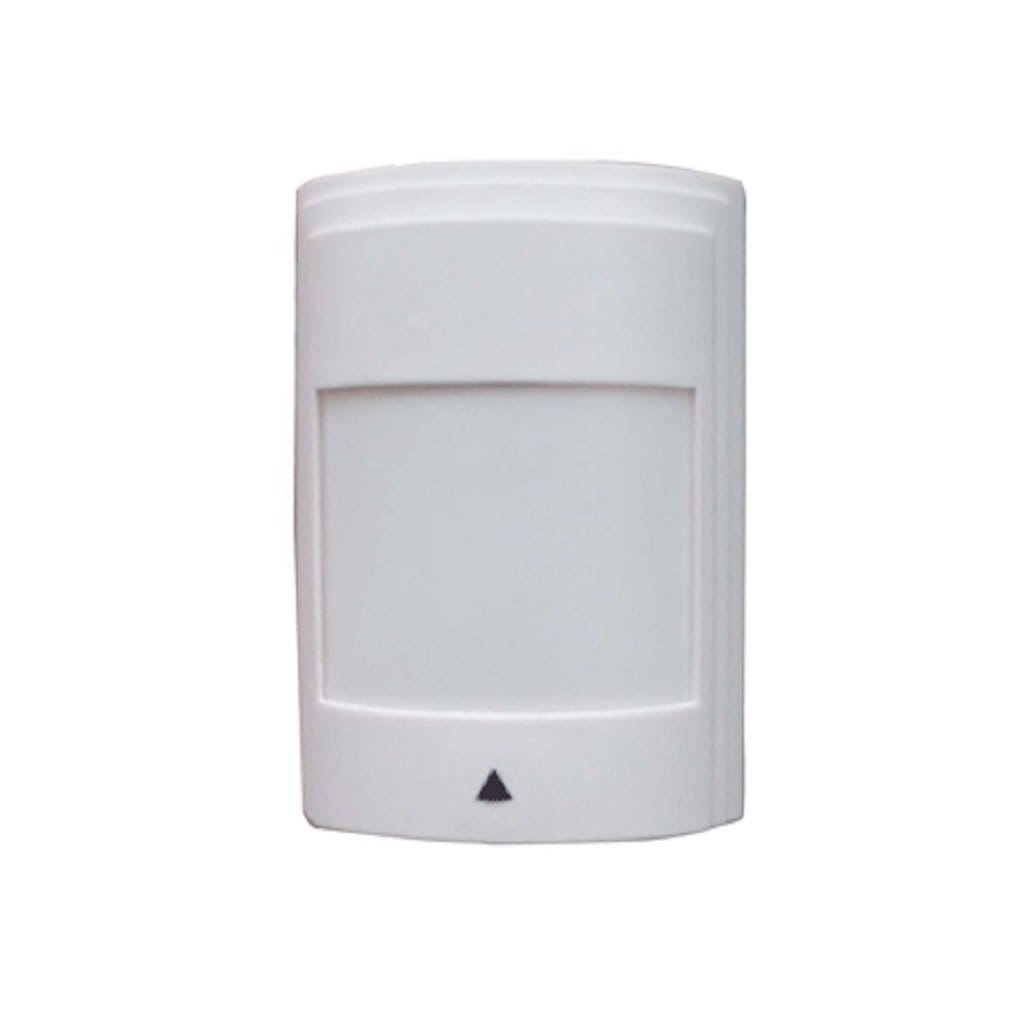

The King Pigeon PIR-01 Wired PIR Motion Detector is a sensitive input device designed to detect motion by sensing the infrared energy emitted from a moving intruder’s body. Ideal for indoor security, it provides accurate detection and helps trigger alarms or security systems in offices, homes, warehouses, and other protected areas.
Arif Hossain, Security Manager: “The PIR-01 provides accurate motion detection with minimal false alarms. Perfect for indoor office security.”
Nusrat Jahan, Warehouse Owner: “Easy to install and works reliably day and night.”
Q: What is the detection range of this PIR sensor? The PIR-01 detects motion up to 8 to 10 meters with a wide detection angle.
Q: Can it be used outdoors? It is designed for indoor use only.
Specifications
| Attribute / Feature | Specification Details |
| Working Voltage | 9-12VDC; |
| Working Current (mA) | 30-120 |
| Static Current(uA) | 25 |
| Detect Range | Vertical angle 60degree, Horizontal angle 110 degree, 8~10m; |
| Installation Method | Wall-mounted; |
| Installation Height | 1.8~2.5m (max.); |
| Size | (HxWxD) 104x60x32mm. |
| Applications | For indoor use. Corridor, Office, Room, Museum, Library, Finance Room, Warehouse, etc. |
